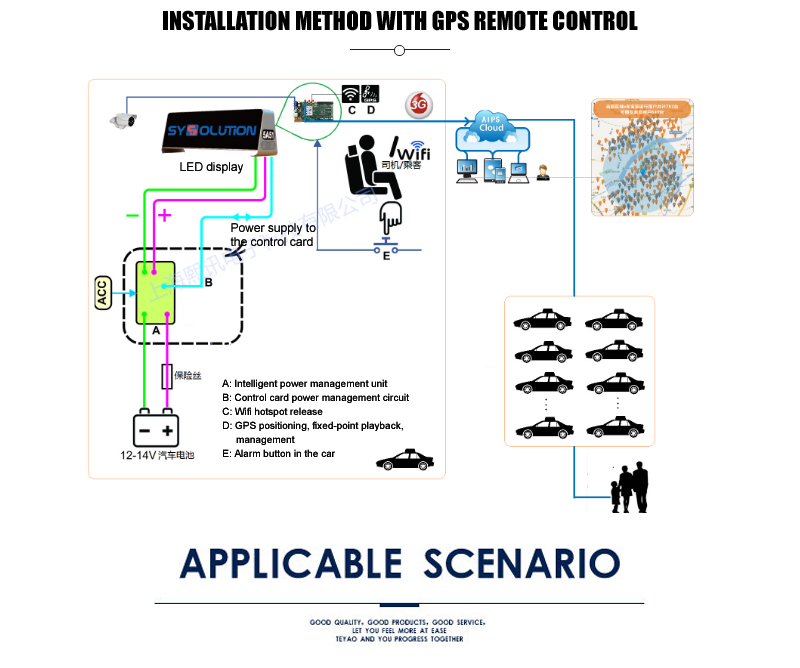

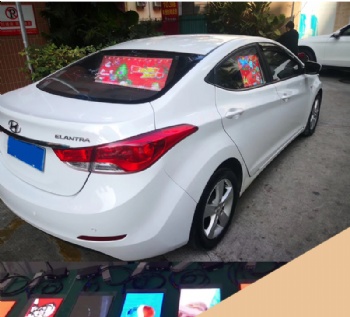

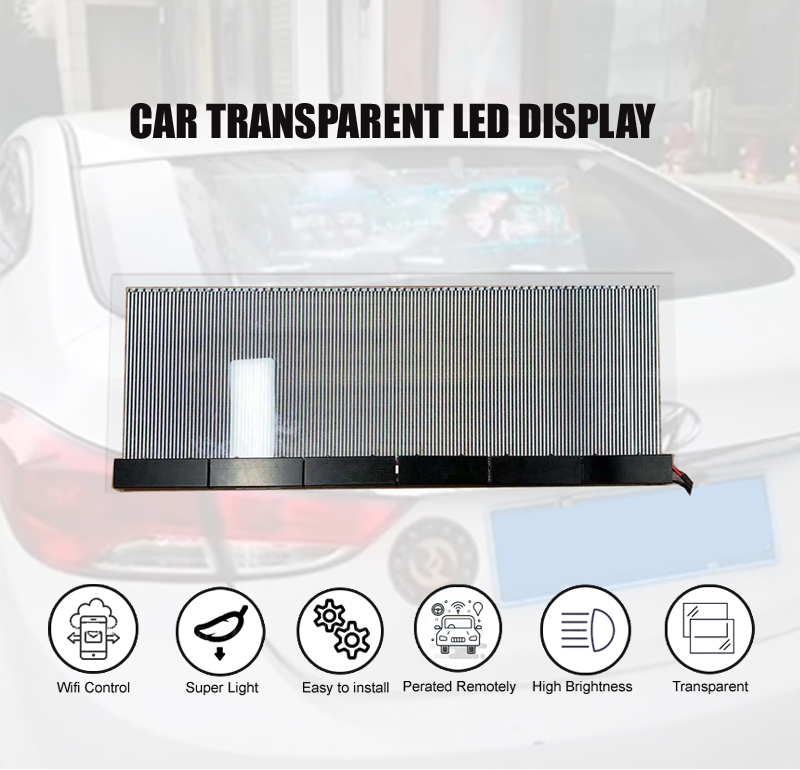

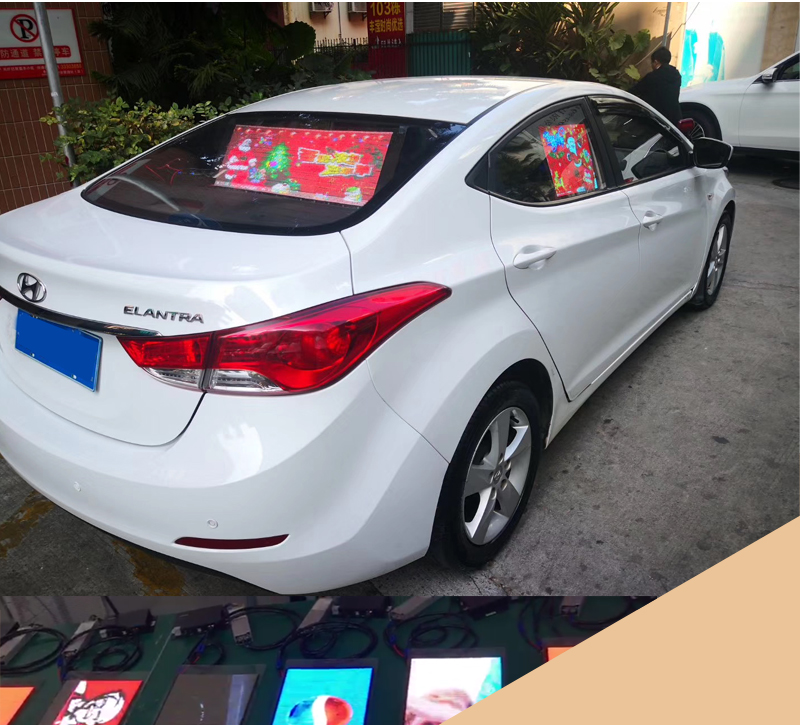

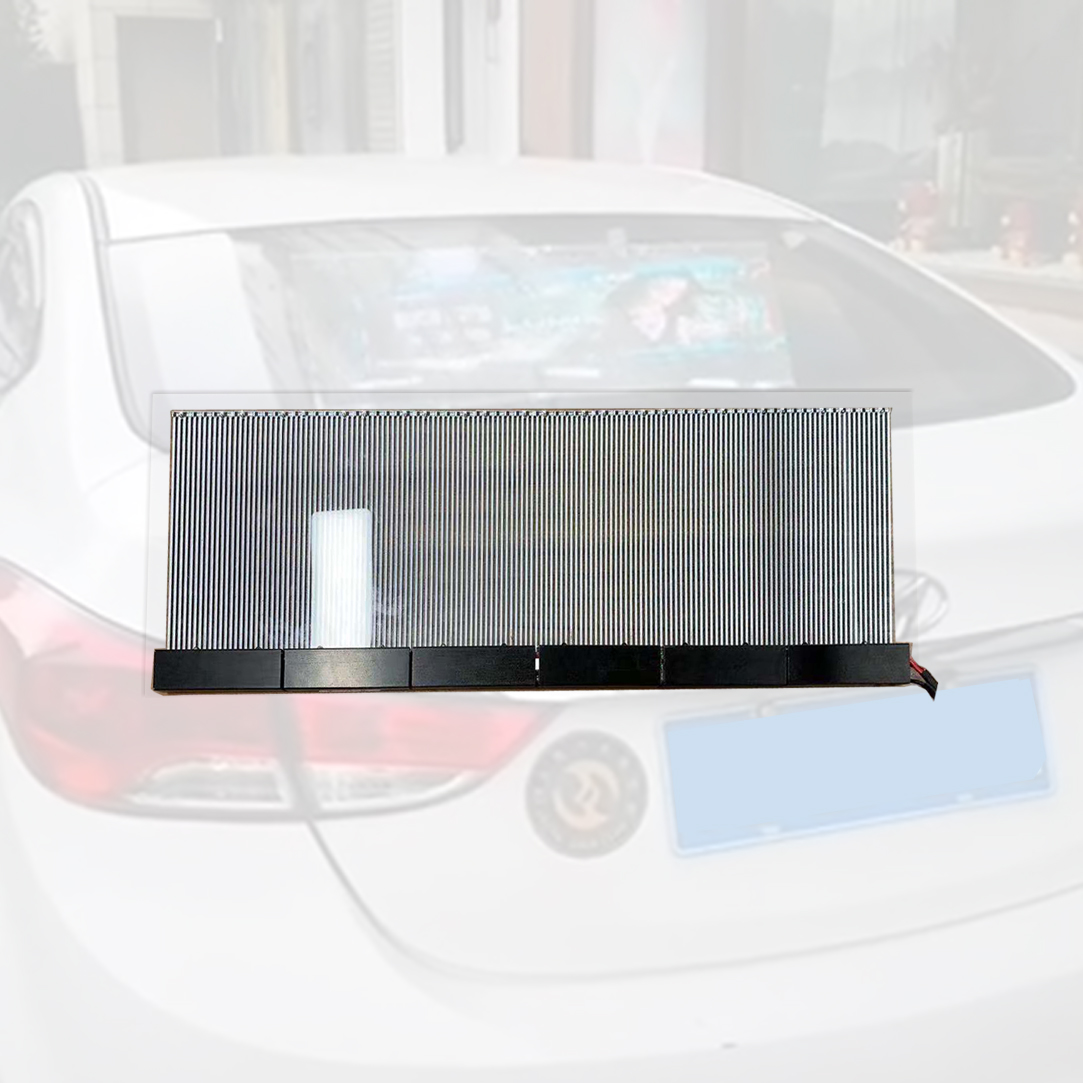

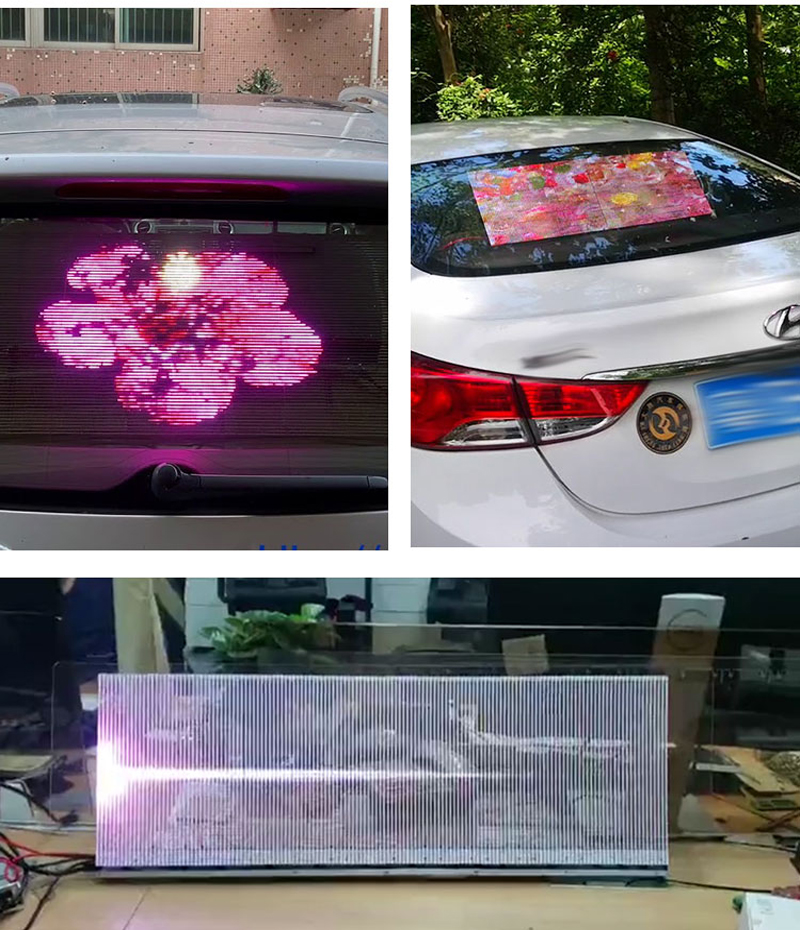

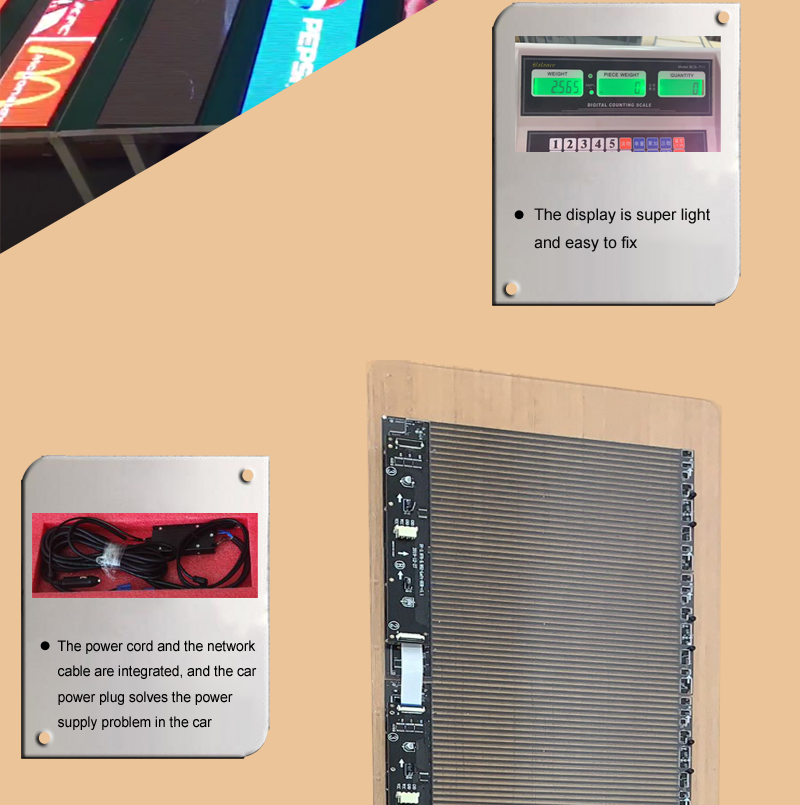

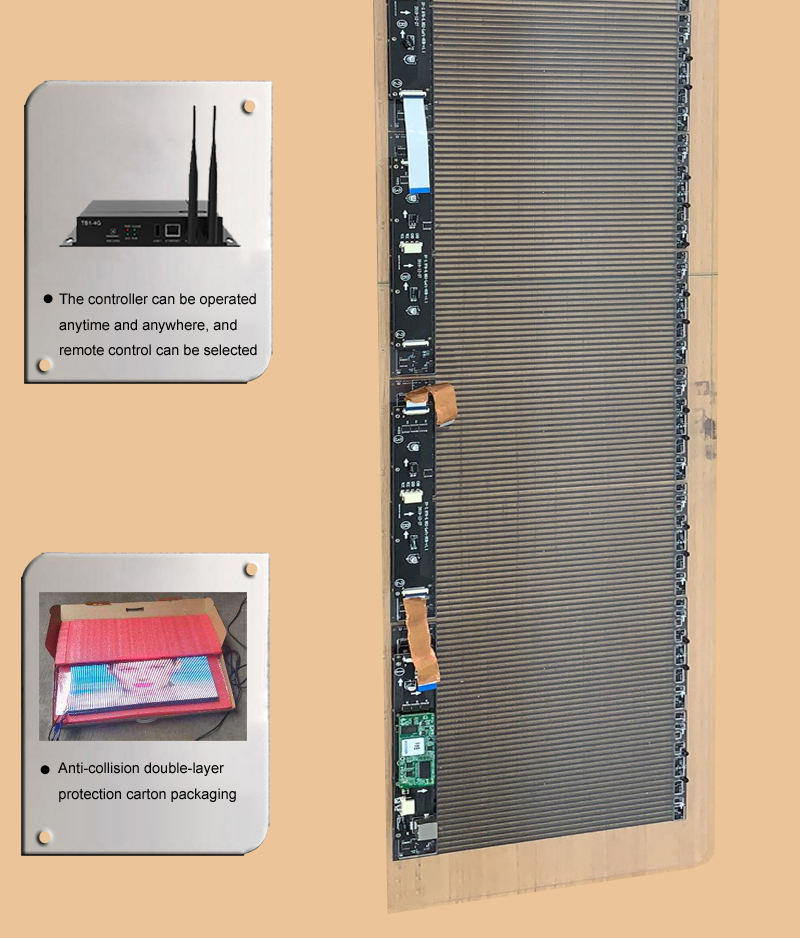

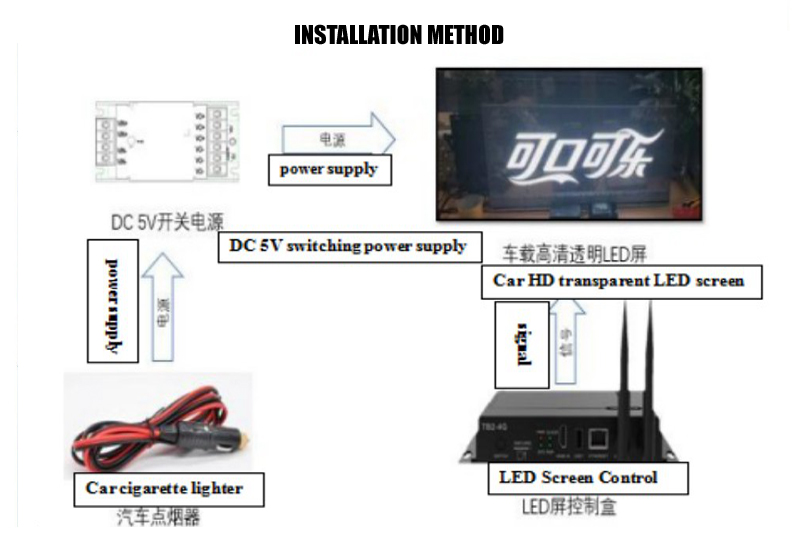

Car rear window led display The vehicle-mounted transparent screen adopts filming technology, and uses the smallest size power box to receive the card to ensure its own light weight advantage. The lamp beads adopt the Nationstar high-quality brand, the brightness can reach 4000nits, and the display weight is only 2.6 kg. The controller can be controlled by mobile phone or computer or USB, via Wifi, 4G, and GPS (taxi window led display) positioning function can be added. the car window led display can be used in the rear window or side window of the car, and the large size can be used in the window of the truck.
If you have any questions or need further information, please send an email to our Professional Marketing Manager (info@ty-leds.com), we will reply you as soon as possible. Thank you!
Transparent car LED display | |||||
Pixel pitch | P2.6-5.2 | P2.6-5.2 | P2.6-5.2 | P2.6-5.2 | P3.91-7.81 |

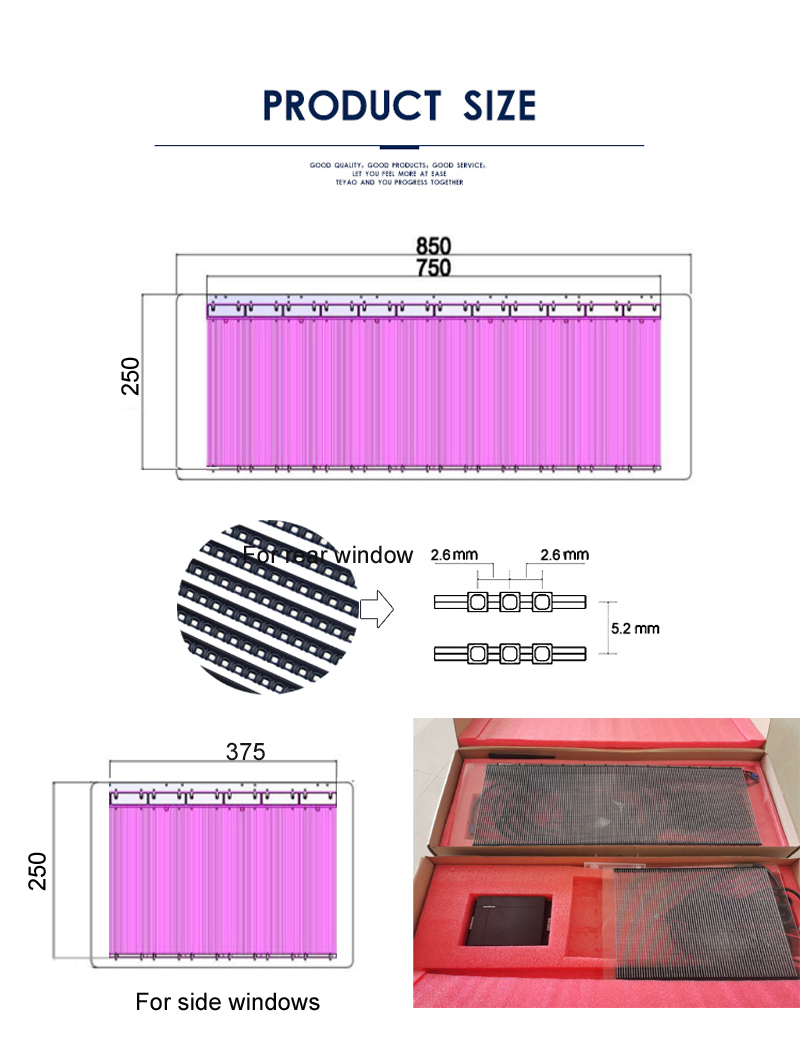

Display size | 375mm*250mm | 750mm*250mm | 875mm*291mm | 1250mm*250mm | 750mm*280mm |
Screen size | 430mm*280mm | 870mm*280mm | 985mm*310mm | 1350mm*280mm | 870mm*310mm |
LED package | SMD1921 | SMD1415 | SMD1921 | ||
Module size | 62.5mm*250mm | 62.5mm*291mm | 125mm*250mm | 125mm*280mm | |
Number of modules | 6PCS | 12PCS | 14PCS | 10PCS | 6PCS |
Module resolution | 12*96dots | 12*112dots | 21*84dots | 16*72dots | |
Screen resolution | 72*96dots/set | 144*96dots/set | 168*112dots/set | 210*84dots/set | 96*72dots/set |
Screen thickness | 28mm | ||||
Screen weight | 0.75kg | 1.5kg | 2.4kg | 2.2kg | 1.6kg |
Permeability | 60% | 65% | |||
Scan | ,1/16 | ,1/14 | ,1/6 | ||
Brightness | ≥4000cd/m2 | ≥4000cd/m2 | ≥5500cd/m2 | ||
Refresh rate | 2880Hz | ||||
Gray scale | 14Bit | ||||
