Advantages of spherical LED display: 1. Seamless splicing: adopting ladder-shaped circuit design, seamless splicing can be realized; 2. Uniform tapping: Supports uniform tapping technology, and the display screen is not distorted; 3. Flexible control: Synchronous and asynchronous compatible, supporting both offline and online modes; 4. Good heat dissipation: use aluminum structural heat dissipation solutions; 5. Convenient installation: As a complete system, it supports floor installation, hoisting, embedded installation, etc.; 6. Convenient maintenance: support front and back maintenance;
If you have any questions or need further information, please send an email to our Professional Marketing Manager (info@ty-leds.com), we will reply you as soon as possible. Thank you!
Advantages of 360 degree 3d advertising Spherical LED Display:
1. Seamless splicing: adopting ladder-shaped circuit design, seamless splicing can be realized;
2. Uniform tapping: Supports uniform tapping technology, and the display screen is not distorted;
3. Flexible control: Synchronous and asynchronous compatible, supporting both offline and online modes;
4. Good heat dissipation: use aluminum structural heat dissipation solutions;

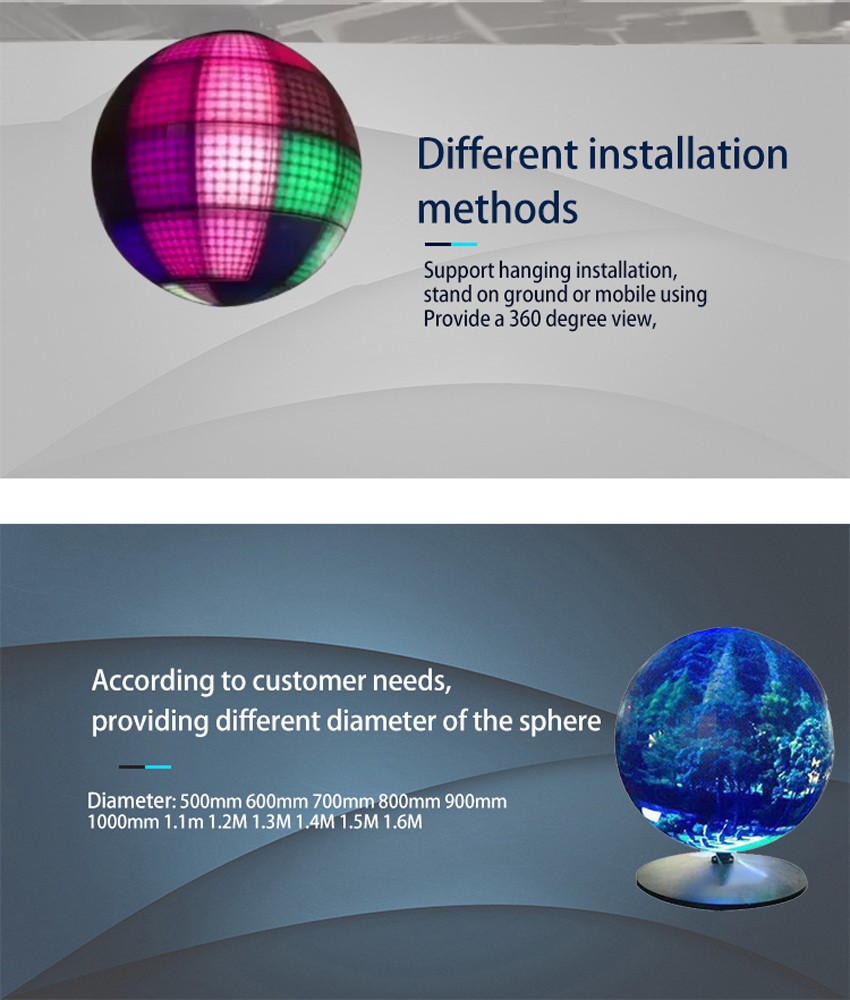

5. Convenient installation: As a complete system, it supports floor installation, hoisting, embedded installation, etc.;
6. Convenient maintenance: support front and back maintenance;
Full color Globe LED Display parameters | ||||||
Specification: | P4.8 | P4 | P2.8 | P2.5 | P2 | P1.8 |
Display diameter: | φ0.5M；φ0.8M；φ1M；φ1.2M；φ1.5M；φ1.8M；φ2M；φ2.2M；φ2.5M；φ3M；φ3.5M；φ4M | |||||
Pixel composition: | 2020 | 2020 | 2020 | 2020 | 1515 | 1515 |
Pixel resolution: | 320*160 | 384*192 | 576*288 | 0*0 | 768*384 | 768*384 |
Display density: (dots) | 40000 | 49000 | 100000 | 0 | 196250 | 241000 |
Whole screen brightness: | 1000nits | 1000nits | 1000nits | 1000nits | 1000nits | 1200nits |
Viewing angle: | H 360° V 360° | H 360° V 360° | H 360° V 360° | H 360° V 360° | H 360° V 360° | H 360° V 360° |
Peak power consumption: (KW) | 0.5 | 0.65 | 0.8 | 0.95 | 1.2 | 1.6 |
Average power consumption: (KW) | 0.3 | 0.4 | 0.5 | 0.6 | 0.75 | 1 |
Operating Voltage: | AC 220V/100V±15% 47～64HZ | |||||
Drive voltage: | 5V | |||||
Way to control: | Constant current 16 scan | Constant current 32 scan | ||||
Communication method: | Synchronous (asynchronous) control | |||||
Gray scale: | Single lamp 256 levels | |||||
Display color: | 16777216 colors | |||||
Best viewing distance: (m) | 3--20 | |||||
Installation method: | Landing/hoisting | |||||
Working environment: | indoor | |||||
Working temperature | -10℃～40℃ | |||||
Working environment humidity: | 10%～90% RH | |||||
