How to make indoor LED display more power-saving? Two methods are recommended: 1. Use energy-saving IC and low-voltage power supply in the design of indoor LED display. 2. Use the most advanced LED common cathode energy-saving technology.
If you have any questions or need further information, please send an email to our Professional Marketing Manager (info@ty-leds.com), we will reply you as soon as possible. Thank you!
Design and manufacturing features:
(1) High density, small dot pitch design
(2) Small display unit, box assembly structure
(3) High heat dissipation efficiency packaging technology
(4) The internal extremely uniform light mixing, the brightness is divided by 1:1.1 times, and the wavelength is divided by 2.5nm
(5) High fill factor, low black area ratio, large display surface luminous body, reducing the graininess of the display surface
(6) Compact RGB chip three-in-one layout package
Common cathode energy saving LED Display:

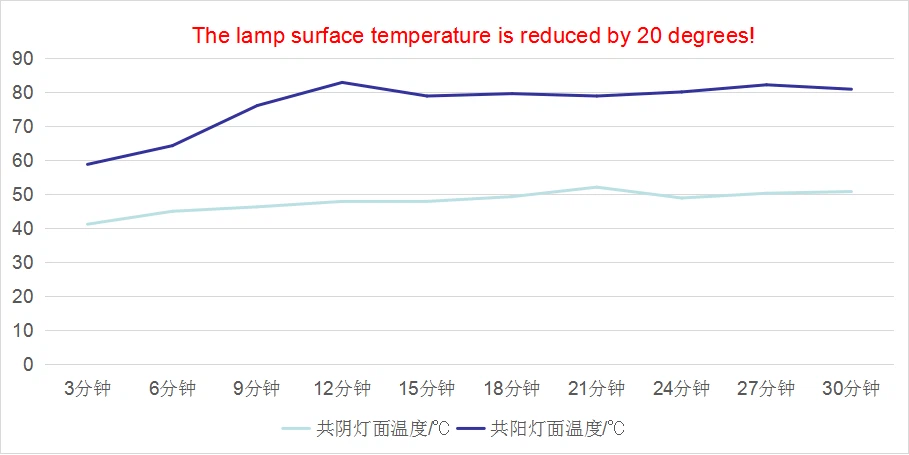

The energy-saving screen and ordinary LED display heat contrast when the same current passes.
Ordinary LED display The energy-saving LED DISPLAY
Temperature rise test/lamp surface temperature (CNAS test report)

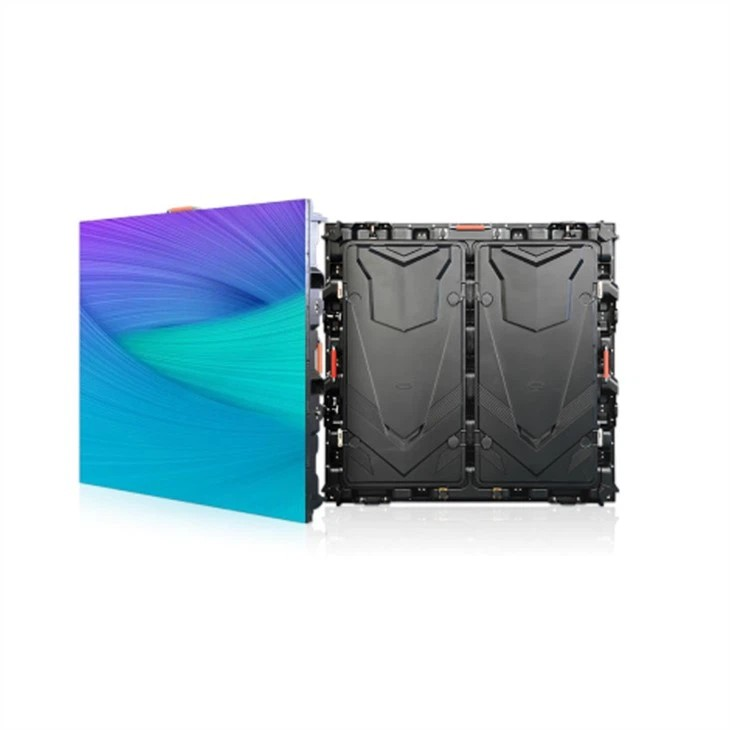

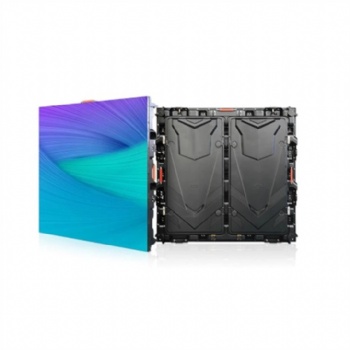

Indoor SMD Energy saving LED Screen
| Module Specifications | |||||||
| 1 | Pixel Pitch | 3.91mm, CUSTOM fine pitch led display | |||||
| 2 | Pixel Configuration | 1R1G1B SMD | |||||
| 3 | Module Resolution | 64*64dots=4096（dot） | |||||
| 4 | Module Size | 250mm*250mm | |||||
| 5 | Cabinet Resolution | 319*256 or 256*256 | |||||
| 6 | Pixel Density | 81664Dot/ m2 or 65536Dot/ m2 | |||||
| 7 | Cabinet type | Simple ordinary iron cabinet, die-al casting cabinet(indoor rental led display) | |||||
| Screen Parameters | |||||||
| 2 | White Balance Brightness (Nit) | 600-800nits | |||||
| 4 | Ambient temperature | working -20 ℃ ～ + 60 ℃ | |||||
| 5 | Brightness control level | 256 levels | |||||
| 6 | Recommended minimum viewing distance | 4m-50m | |||||
| 7 | View Angle | Horizontal 140 degrees (+ 10 / -10)/ Vertical 140 degrees (+ 10 / -10) | |||||
| 8 | Refresh rate | ＞1920HZ | |||||
| 9 | Refresh Rate | 180frames / second | |||||
| 10 | Working voltage | 110-220V | |||||
| 11 | Continuous use time | ＞72hours | |||||
| 12 | MTBF | ≥10000hours | |||||
| 13 | Drive mode | constant current drive | |||||
| 14 | Control method | Asynchronous control | |||||
| 15 | Driving Method | Common Cathode Constant Current Drive | |||||
| 16 | Life Span | 100,000 Hrs | |||||
| 17 | Humidity-Operating | 10 - 90% | |||||
| 18 | Ventilation | Fans | |||||
| 19 | Ingress Protection Rating(F/R) | IP45 | |||||
