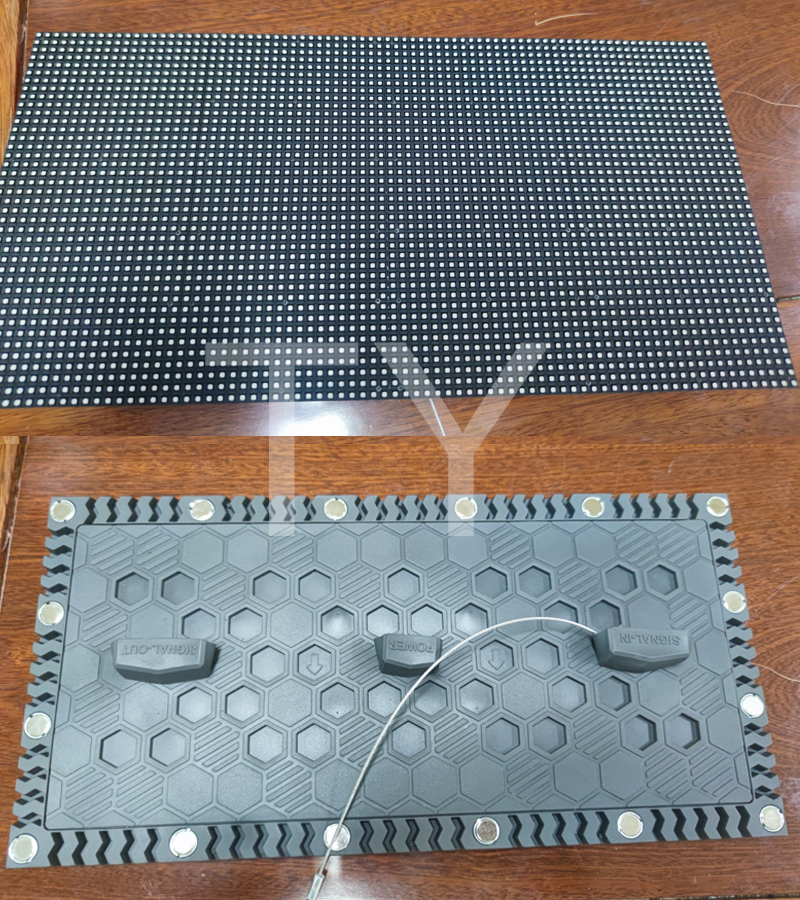

Outdoor waterproof soft module, commonly used pixel pitch is P4, module size is 128*256mm.
If you have any questions or need further information, please send an email to our Professional Marketing Manager (info@ty-leds.com), we will reply you as soon as possible. Thank you!
①The surface of the Nationstar lamp bead is matte, ultra-high contrast, 100% flatness of the lamp surface, which solves the problem of LED glare, longer life, stable, high brightness, bright and bright light
②Toughness mask, using high temperature resistant, wear resistant materials, not easy to damage, and easy to be brittle and cracked compared with conventional
Compared with the side table, it has a tougher usability
③The bottom shell of stiffener structure has good flatness and is not easy to deform
④The drainage hole design improves the protection ability and further guarantees the service life of the display screen.
⑤Double-layer protection, high-performance thermal conductivity potting silica gel and three anti-paint protection, the product has stronger weather resistance
⑥The gold-plated interface uses pure copper gold-plated material, the transmission signal is more stable, and the oxidation resistance is strong
⑦Selected PCB boards with a thickness of 1.2mm, coupled with a unique PCB board design process, make the display more stable, more energy-saving, and lower power consumption.

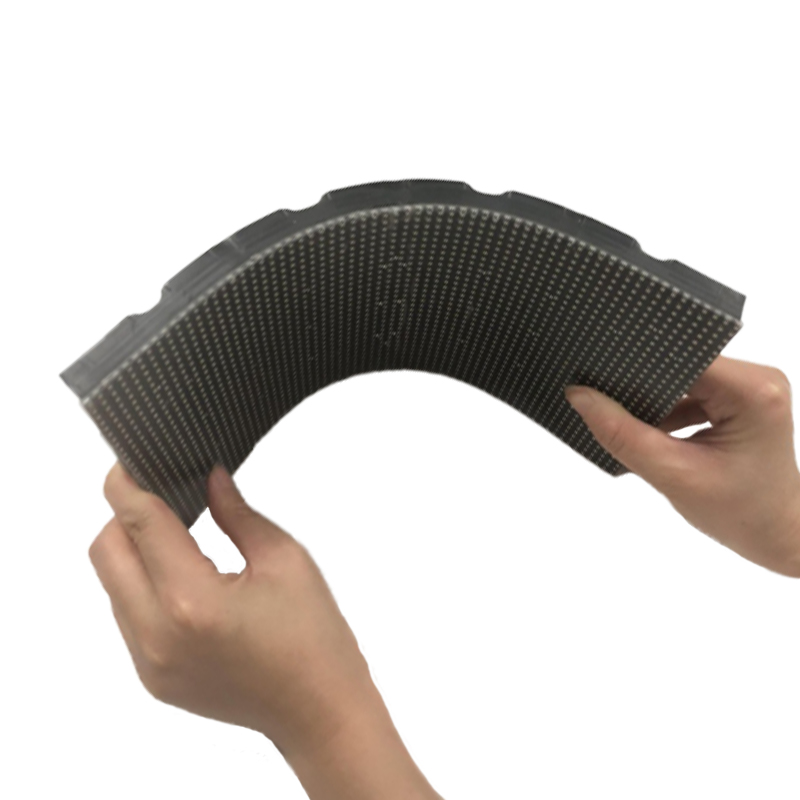

Outdoor flexible led module
P4 outdoor flexible led display | |
Pixel Pitch | 4mm |
Led Lamp | SMD2121(Nationstar) |
Control System | Novastar |
Pixel Density | 62500 pixels/sqm |
Pixel Configuration | 1R1G1B |
Module Resolution | 64*32dots |
Module Size | 256mm(L)x128mm(H) |
Cabinet Size | 1000mm*500mm |
Cabinet Weight | 11.5KG |
Scan Mode | 16 S |
Refresh Rate | ≥1920HZ |
Brightness | 1200 nits |
Grayscale | 16Bit |
Best Viewing Distance | 5-100m |
Viewing Angle | Horizontal ≥120° / Vertical ≥120° |
Input Voltage | AC100~240V 50Hz |
Working Voltage | 220±5% / 110±5% →DC5V |
Maximum Power Consumption | 800W |
Averave Power Consumption | 200W |
Working Temperature/Humidity | -40℃~+85℃/10-95% no condensation |
Ingress Protection Rating | IP67 |
Lifespan | 100000hrs |
Warranty | 2 years |

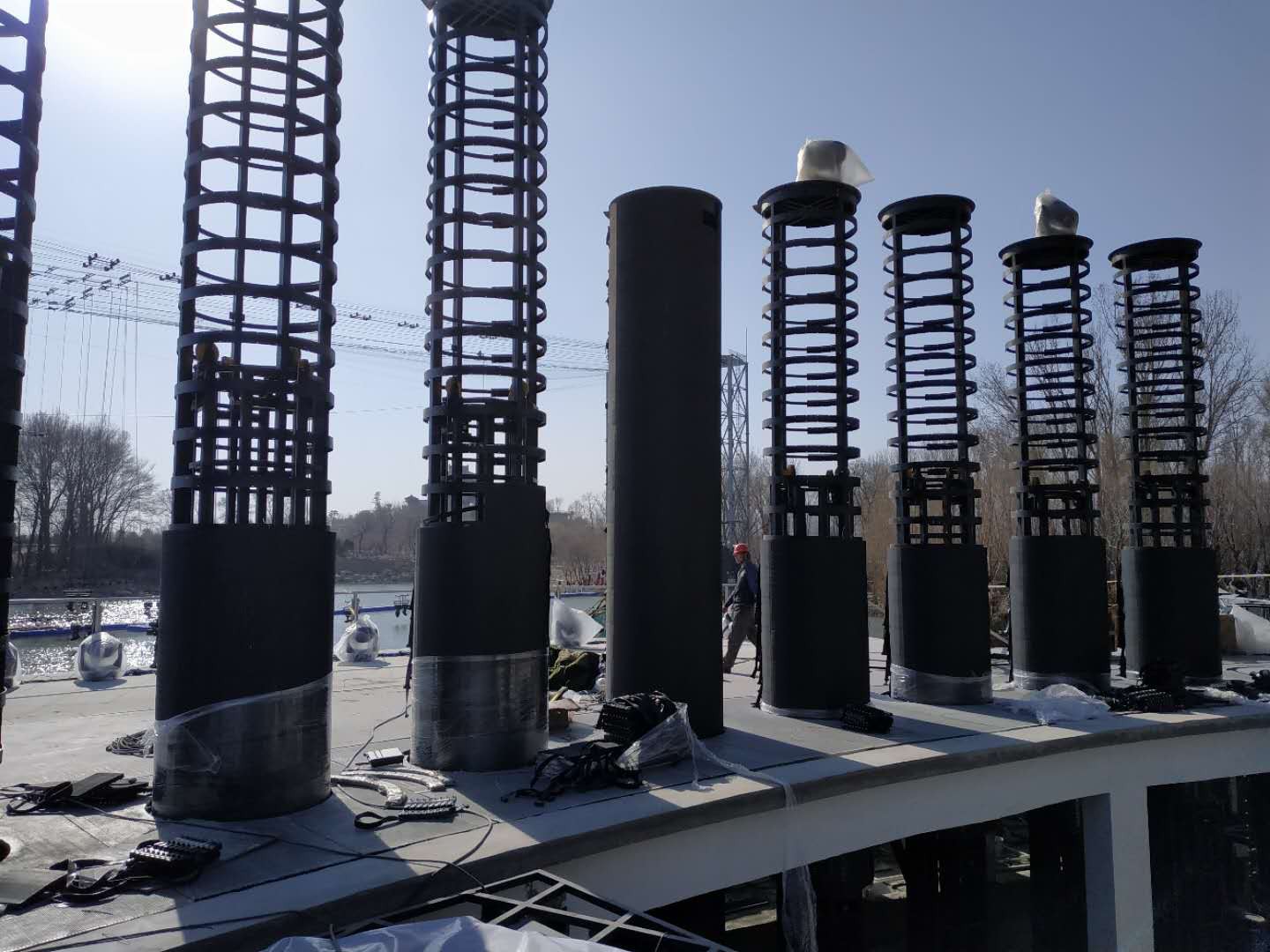

Installation Method | According to the site can be hoisted, fixed installation method |
