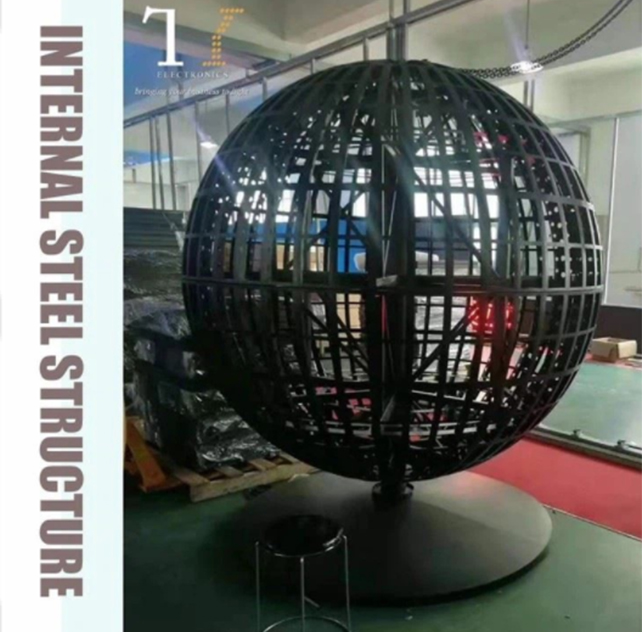

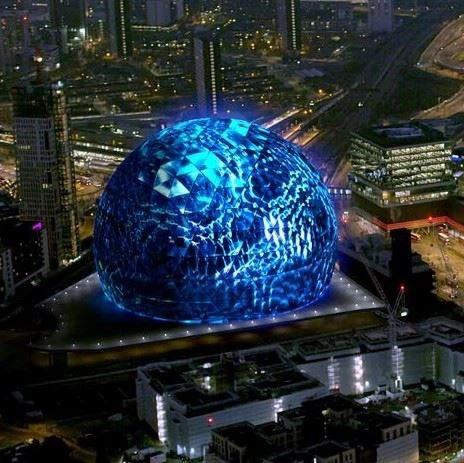

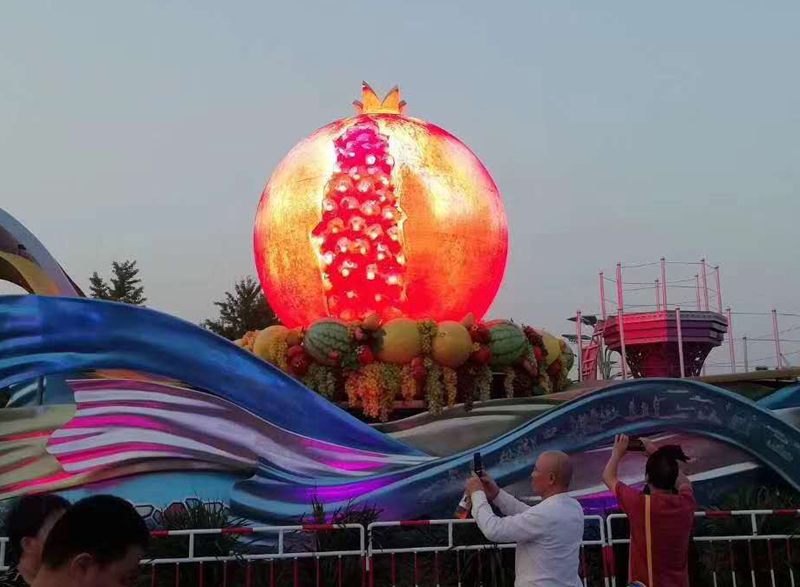

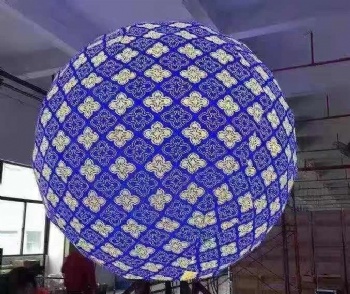

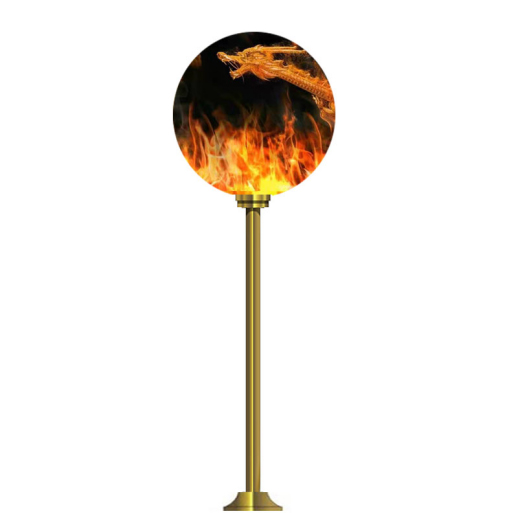

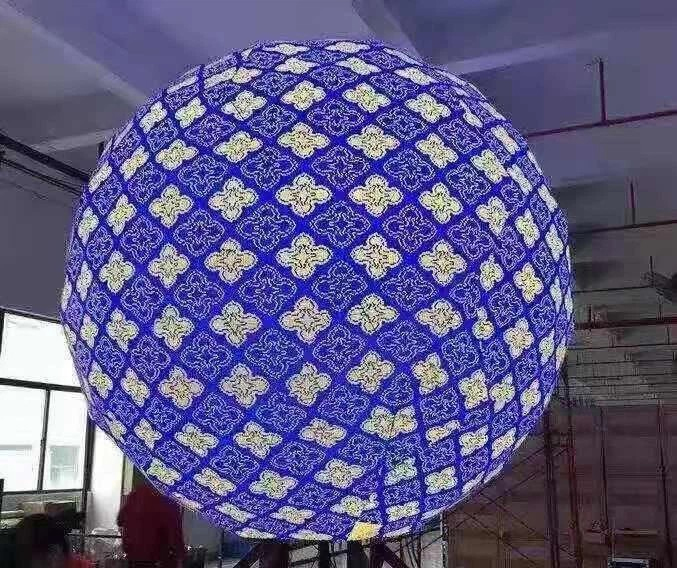

1. LED spherical screen can be used for outdoor and indoor; 2. After special treatment, the display unit can be assembled into a variety of special-shaped screens, such as inner arc display surface, outer arc display surface, inner circle display surface, S display surface, and spherical shape; 3. The protection level can reach IP67 4. The viewing Angle of the spherical LED display screen is 360 degrees, playing videos in all directions, and there is no perspective problem of the flat LED display screen; 5. Multiple pixels in series or parallel can realize full-color display, and video can be played clearly. LED ball can control display full-color video synchronously or asynchronously, supporting access to various foreign signals. The diameter of LED ball can be designed and produced according to customer requirements, and the sphere is completely completed by NUMERICAL control.

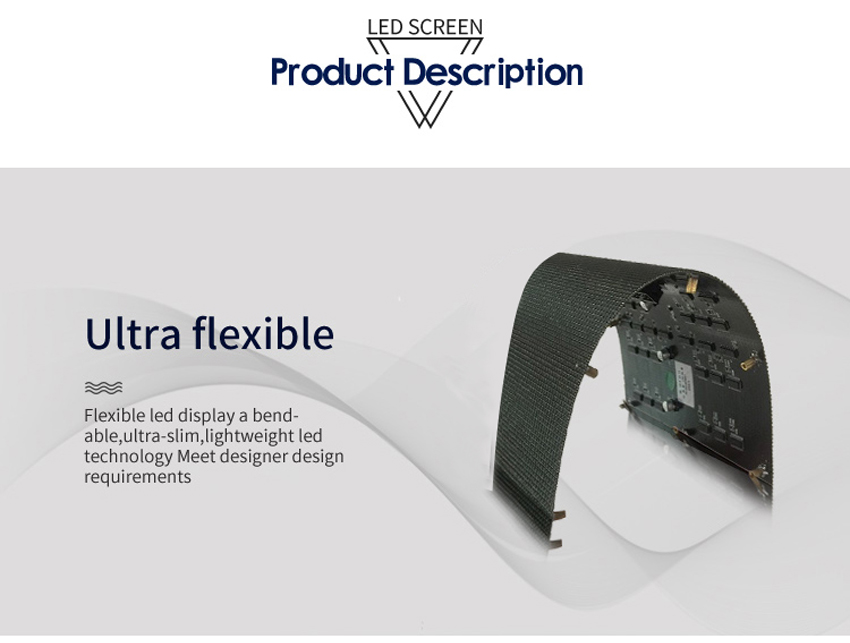

If you have any questions or need further information, please send an email to our Professional Marketing Manager (info@ty-leds.com), we will reply you as soon as possible. Thank you!
Full color Outdoor Goble LED display parameters | ||||
LED Lamp | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
LED configure | 1R1G1B | |||
White balance ratio | ,3:6:1 | |||
Pixel pitch | 5mm | 6mm | 8mm | 10mm |

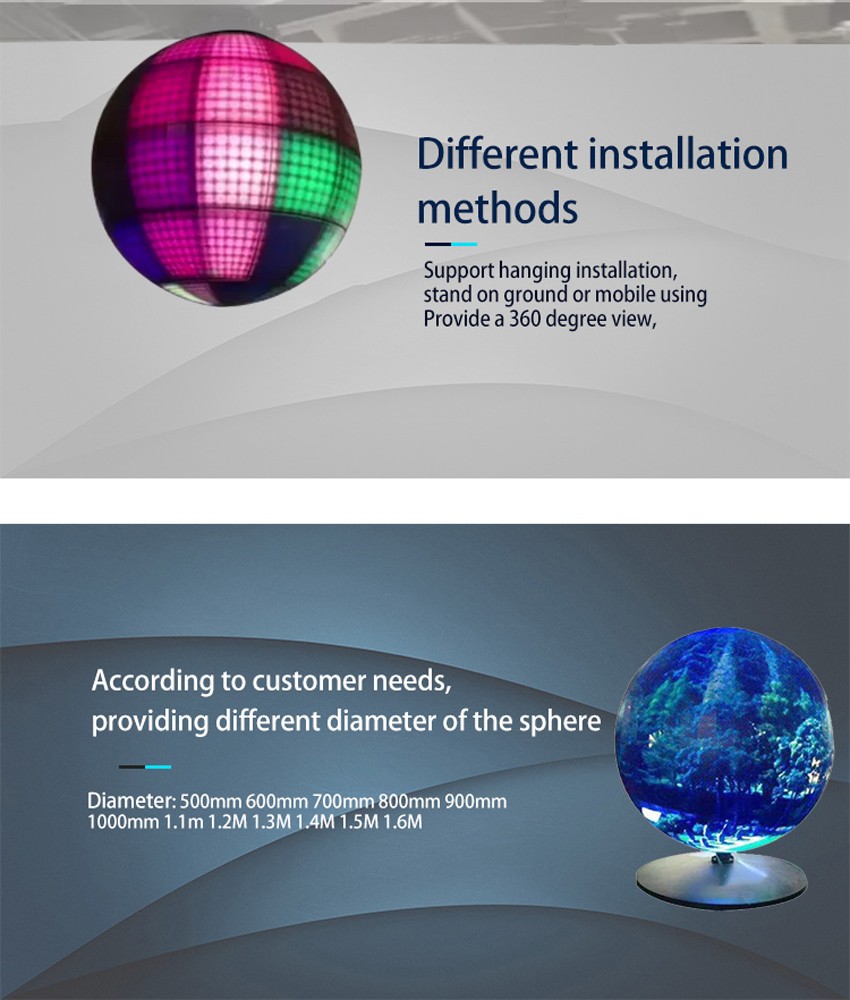

Diameter | φ0.76M,φ1.5M, φ2M, φ2.5M, φ3M, φ4M, φ4.2M, φ6M | |||
Drive mode | Constant current drive,1/8S | |||
Brightness | 5000-5500cd/m2 | |||
Viewing angle | H 360° V 360° | |||
Grayscale | ≥16bits/ 4096 level | |||
color | 1.67billion | |||
The most powerful | 12.16 KW/h | |||
The average power consumption | 350W/m2 | |||
Power | AC 220V/100V±15% 47~64HZ | |||
Frame Rate | 60Hz | |||
Refresh Rate(Hz) | 1920Hz | |||
Brightness adjust | 0-100% | |||
Grayscale | 16bits | |||
Color Temperature | 7000-8500K | |||
Input | S-Video,RGB,RGBHV, YUV, YC,Composition | |||
Operating system | Windows(98,2000,XP,Vin7) | |||
controler systerm | Nova | |||
Storage Environment | (-40℃~+85℃) | |||
Working Environment | ( -20℃~+50℃ ) | |||
Working Environment | 10-90% RH | |||
Lifetime (H) | 100,000Hours | |||
IP Grade | IP65 | |||
Color temperature | 3000K-9000K (adjustable) |
