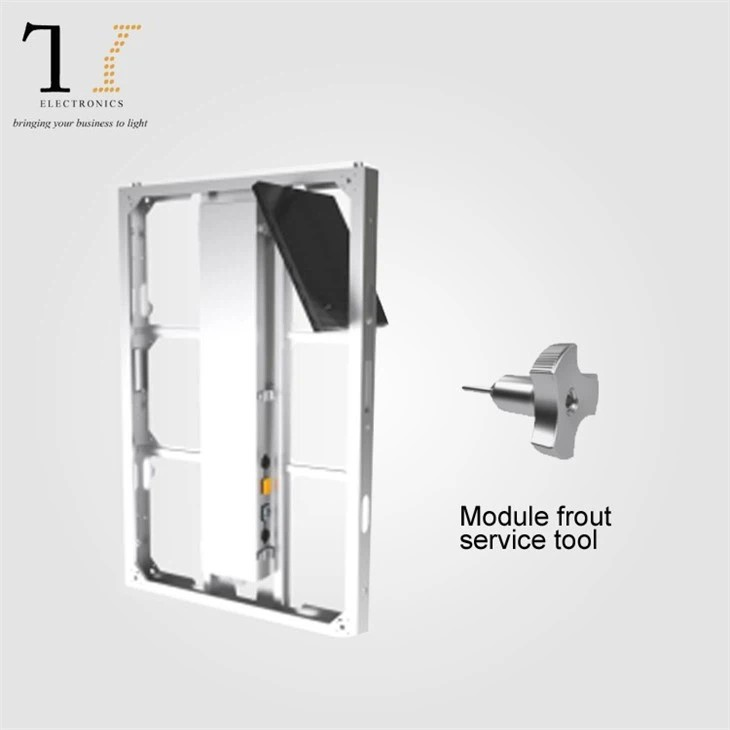

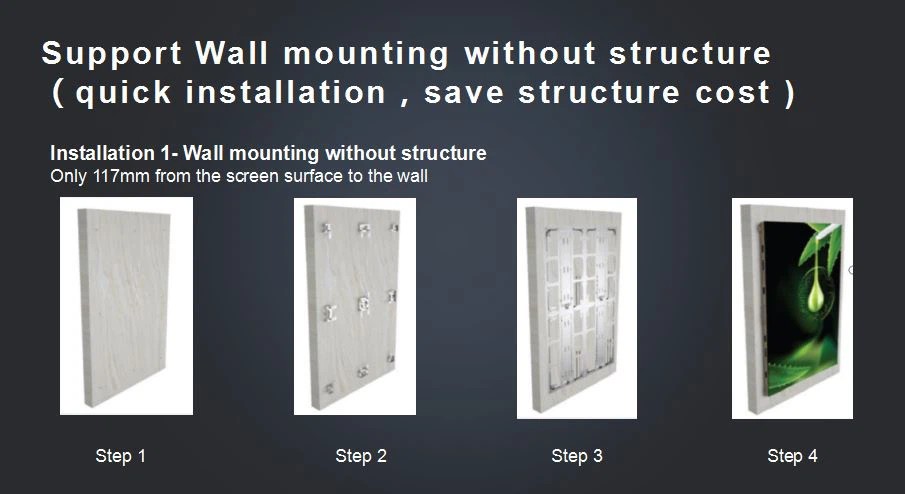

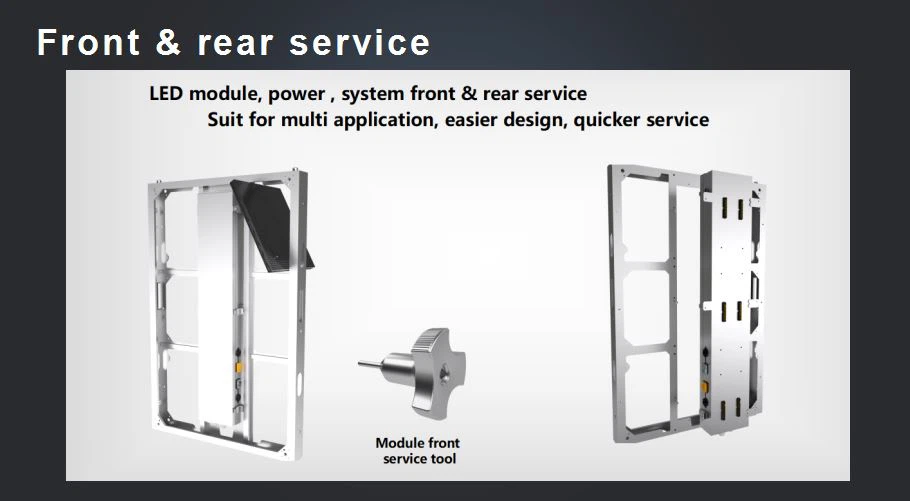

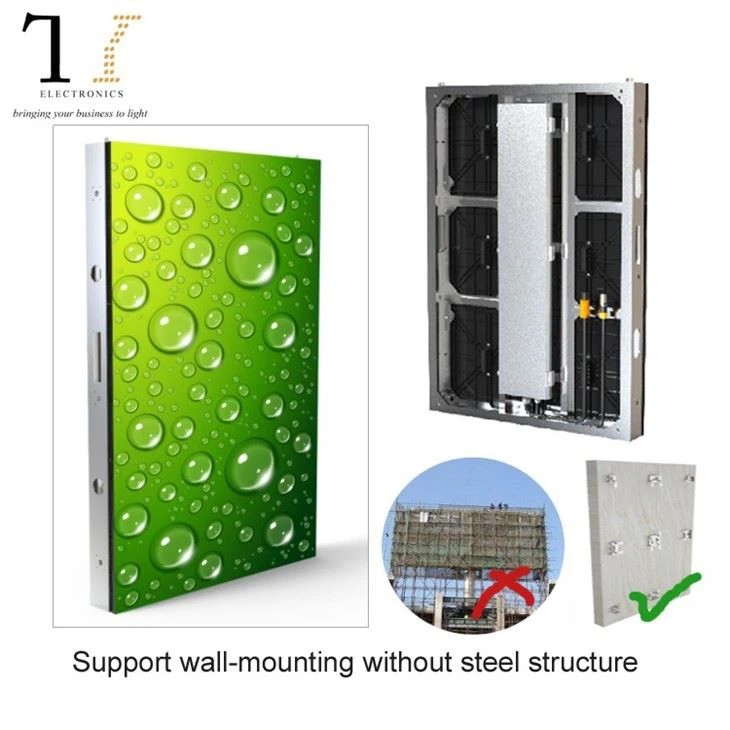

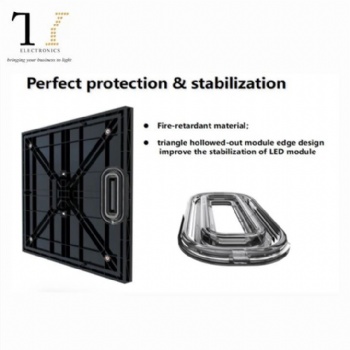

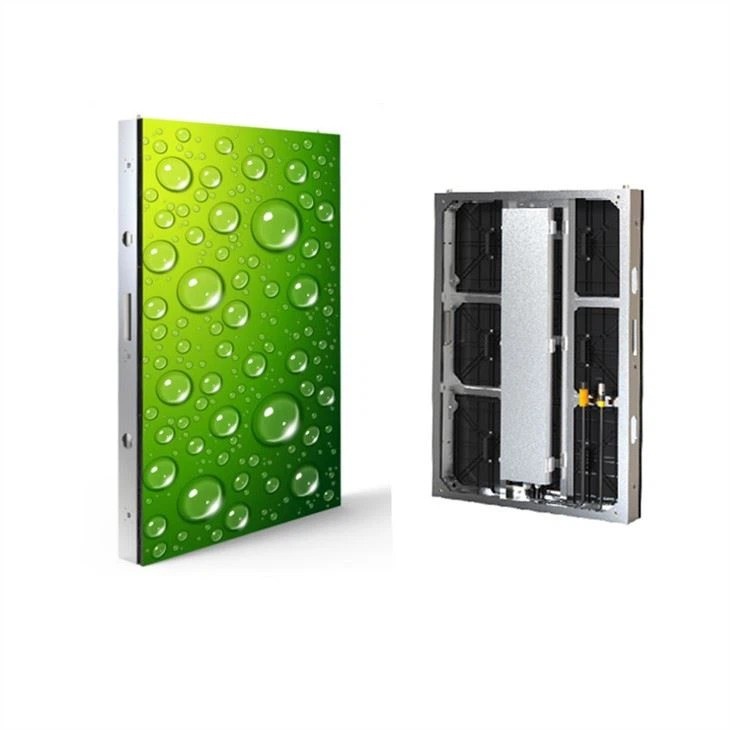

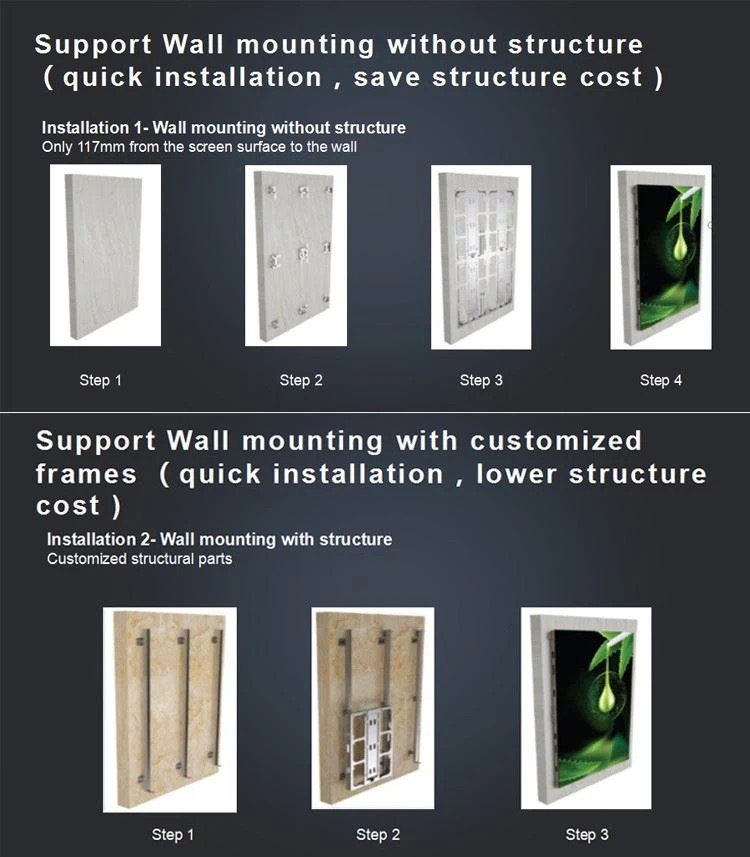

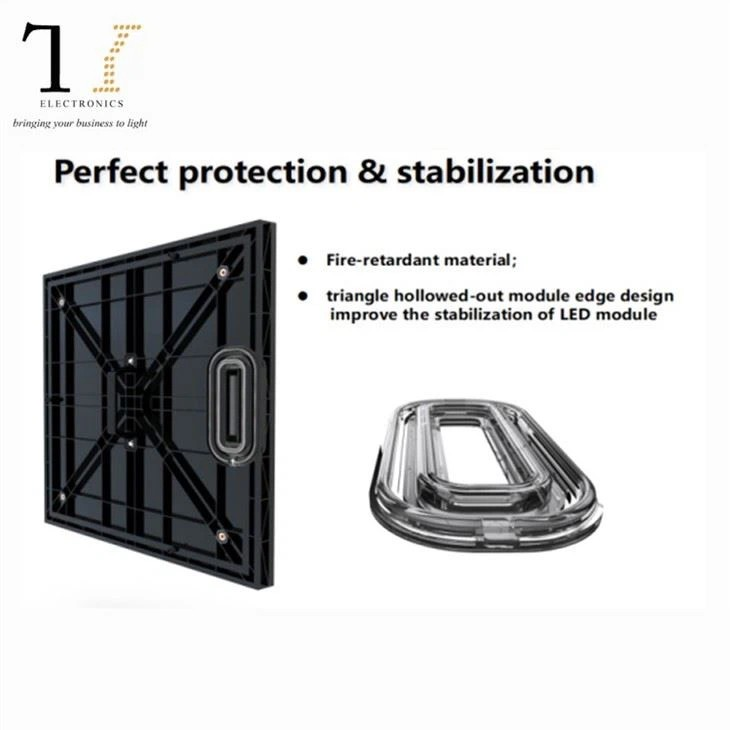

HR Light Weight High Quality outdoor advertising led display screen 1.Super thin and light design，thickness only 98mm, weight only 15.3kg/panel. 2.Support wall-mounting without steel structure (for option) to save cost and installation time. easy installation outdoor led wall 3.Support both front side and rear side installation and maintainance. 4.Adopt triple waterproof design. 5.Plug-in connection design for reliable signal and quick dismantling. 6.Integrated power, HUB and system.
If you have any questions or need further information, please send an email to our Professional Marketing Manager (info@ty-leds.com), we will reply you as soon as possible. Thank you!
P6.67 outdoor led display; P8 outdoor led display; p10 outdoor led display

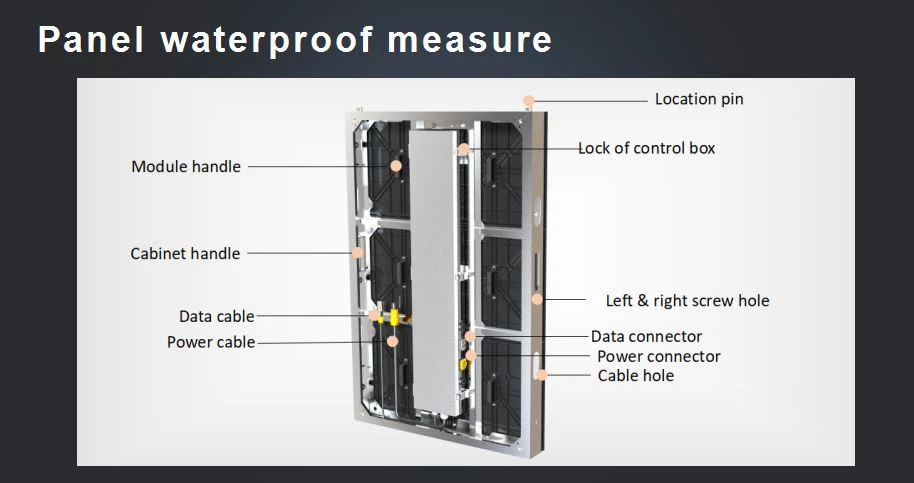

outdoor led display screen

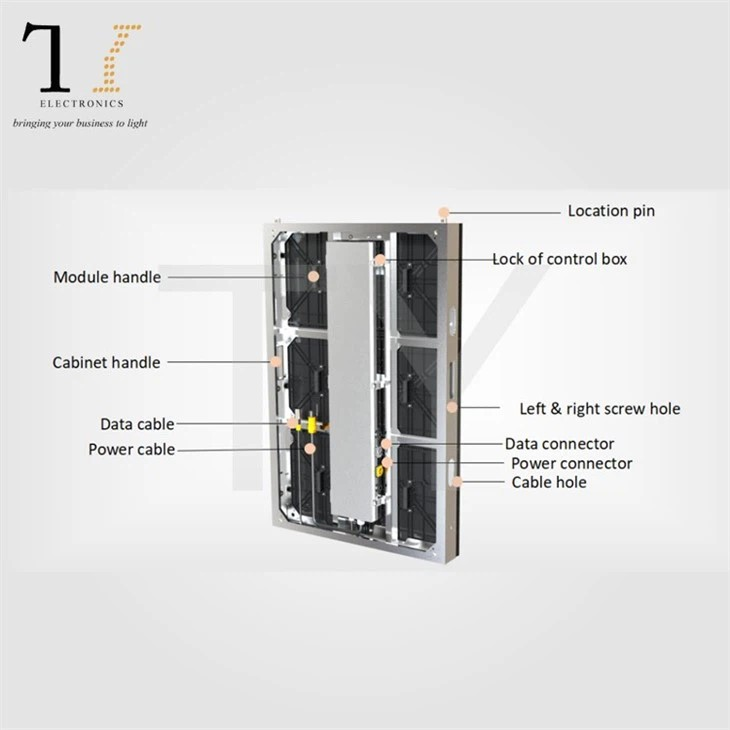

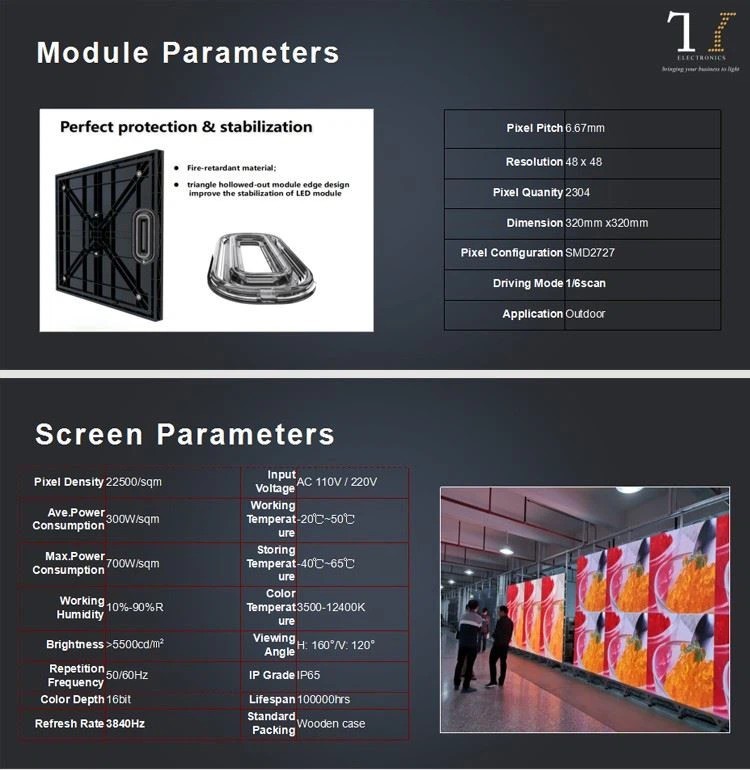

| MODEL | GF660 | GF800 | GF1000 |
| Pixel Pitch | 6.67mm | 8.0mm | 10.0mm |
| Pixel Configuration | SMD2727 | SMD3535 | SMD3535 |
| Panel | Resolution | 96*144dots | 80*120dots |
| Resolution | 22500dots/m2 | 15625dots/m2 | 10000dots/m2 |
| Panel Size | 640mm(L)x960mm(H) | Panel Weight | 15.3kg (Alluminum alloy) |
| x98mm (W) | |||
| Brightness | ≥5500nits | ≥6000nits | ≥6500nits |
| Gray Scale | 16bit | ||
| Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Power(Max/Avg)/m2 | 700W/300W | 700W/300W | 700W/300W |
| IP Grade | IP65/IP54(F/R) + (salt spray proofing for seaside project) | ||
