Robust & Impact resistence Large viewing angle Less color-bias Higher definition Detter contrast Superb uniformity Unique maintenance Low reflection high resolution led display
If you have any questions or need further information, please send an email to our Professional Marketing Manager (info@ty-leds.com), we will reply you as soon as possible. Thank you!
Robust & Impact resistence
Large viewing angle
Less color-bias
Higher definition
Detter contrast
Superb uniformity

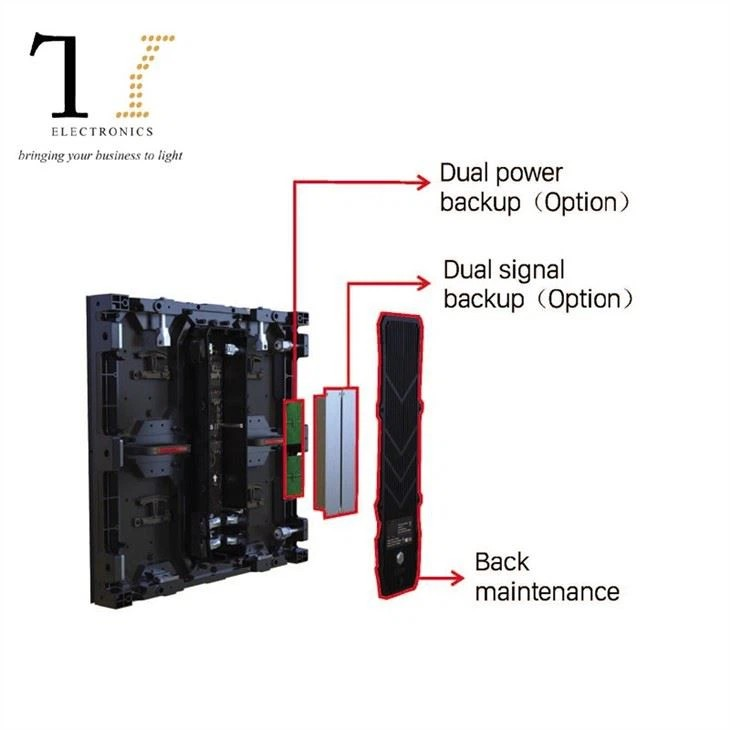

Unique maintenance
Low reflection
| Outdoor Small picth LED display | |||||
| PITCH | P1.56 | P1.95 | P2.6 | P2.97 | P3.9 |

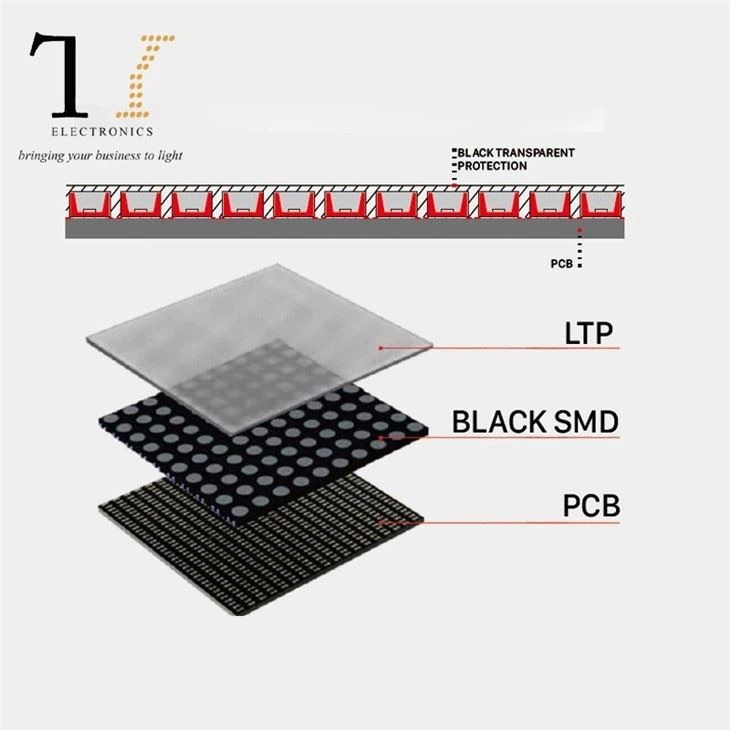

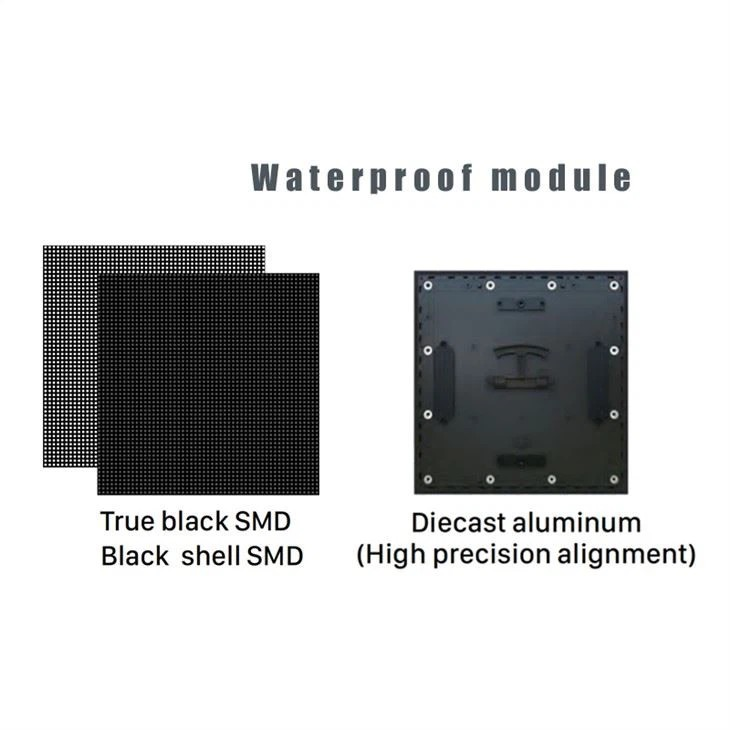

| TRUE BLACK SMD | >3500cd/m2 | >3500cd/m2 | >3500cd/m2 | >4000-4500cd/m2 | >4000-4500cd/m2 |
| BLACK SHELL SMD | / | / | / | >5000cd/m2 | >6000cd/m2 |
| DISTANCE | > 1.56m | > 1.95m | > 2.6m | > 2.97m | > 3.9m |
| LED KIND | SMD1010 (LTP) | SMD1515 (LTP) | SMD1515 (AOB/LTP) | SMD1515 (AOB) | SMD1921 (AOB) |
| PIXEL DENSITY | 409600 dots/m2 | 262144 dots/m2 | 147456 dots/m2 | 112896 dots/m2 | 65536 dots/m2 |

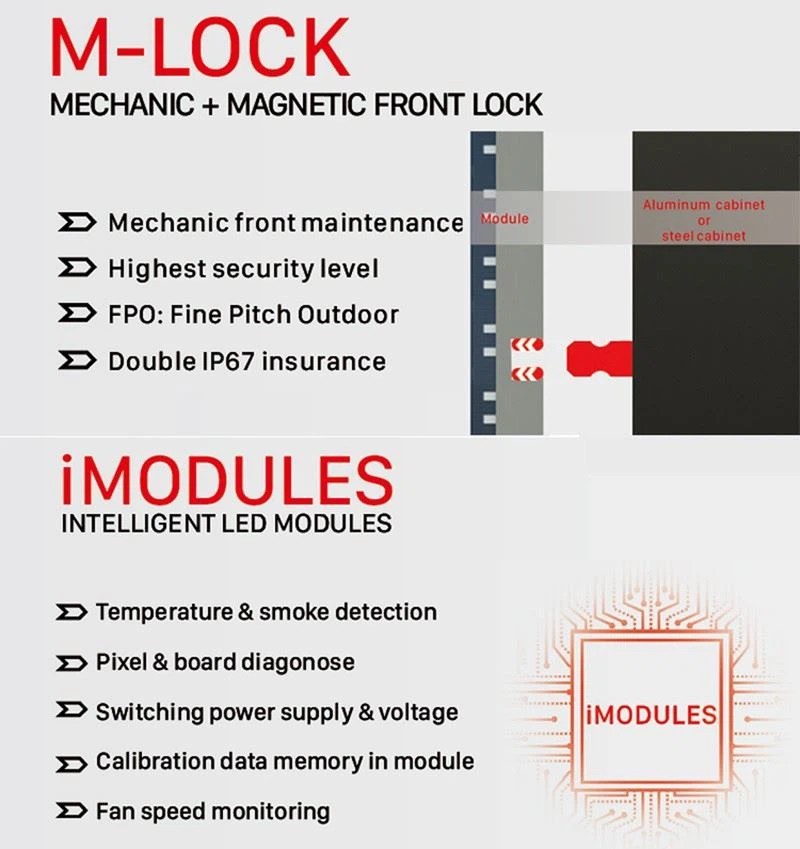

| TECHNOLOGY | M-lock, LTP, AOB, FPO , HDR , iMODULES, CCT (Optional technology) | ||||
| REFRESH RATE | 1920Hz - 3840Hz | ||||
| VIEWING ANGLE | 160°(H) / 160°(V) | ||||
| MODULE SIZE | 250 x 250 mm | ||||

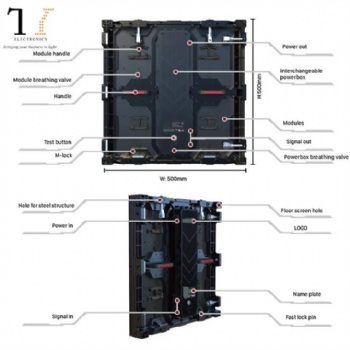

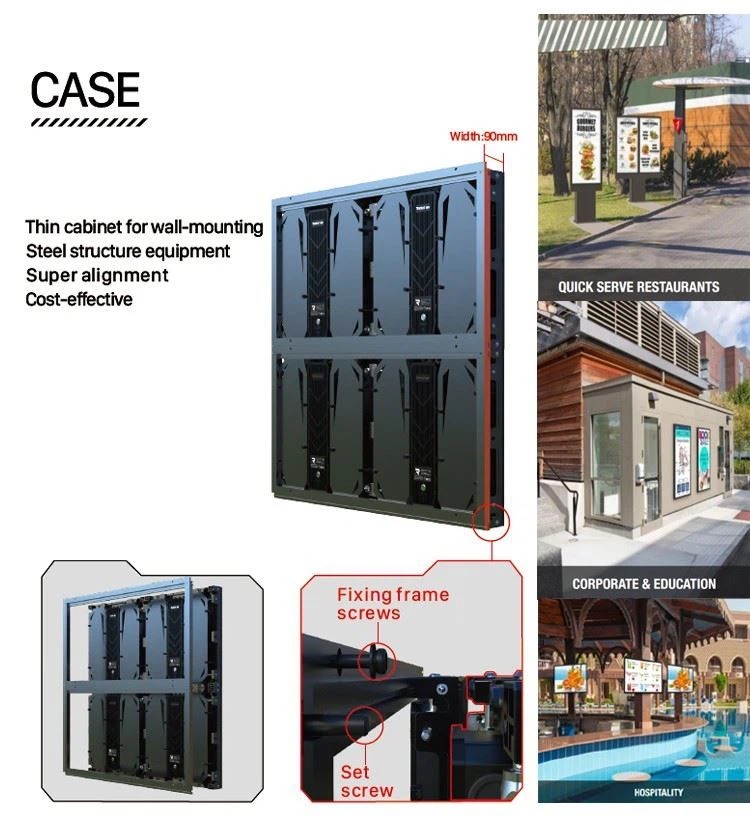

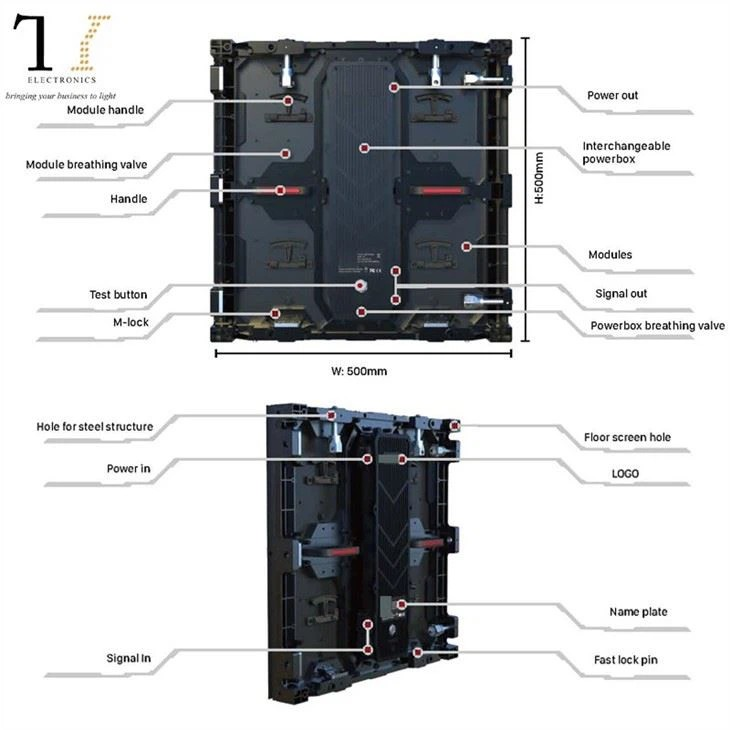

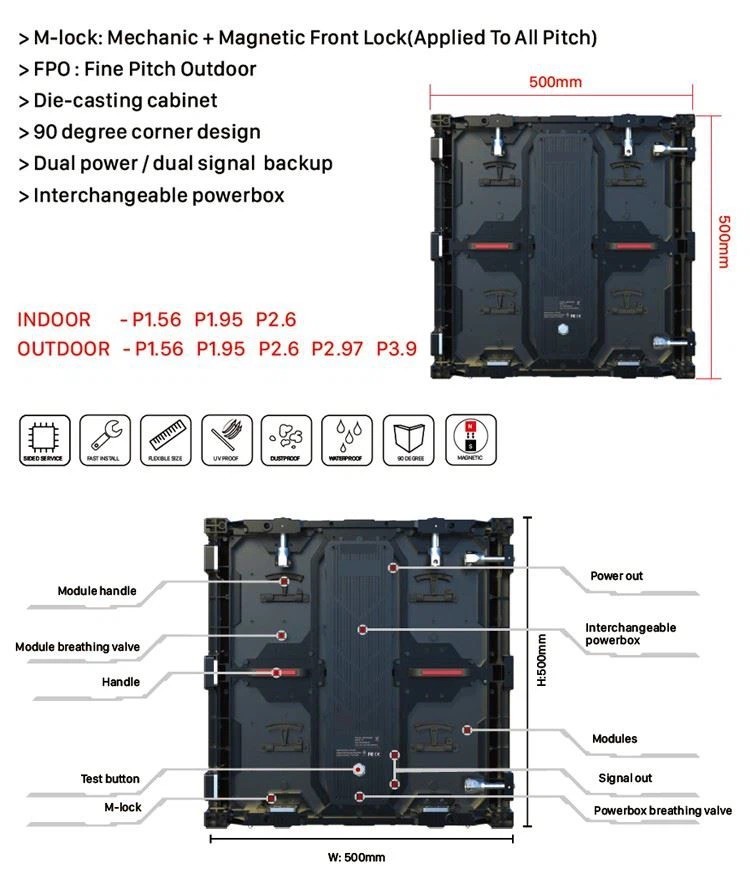

| CABINET SIZE | 500 x 500 x 82 mm/ 19.7'' x 19.7'' | ||||
| DRIVE MODE | 1/32 scan | 1/32 scan | 1/16 scan | 1/14 scan | 1/8 scan |
| ENVIRONMENT | IP65 / IP54 | ||||
| MAX POWER | 900W/m2 | ||||
