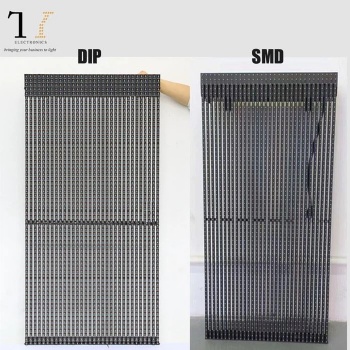

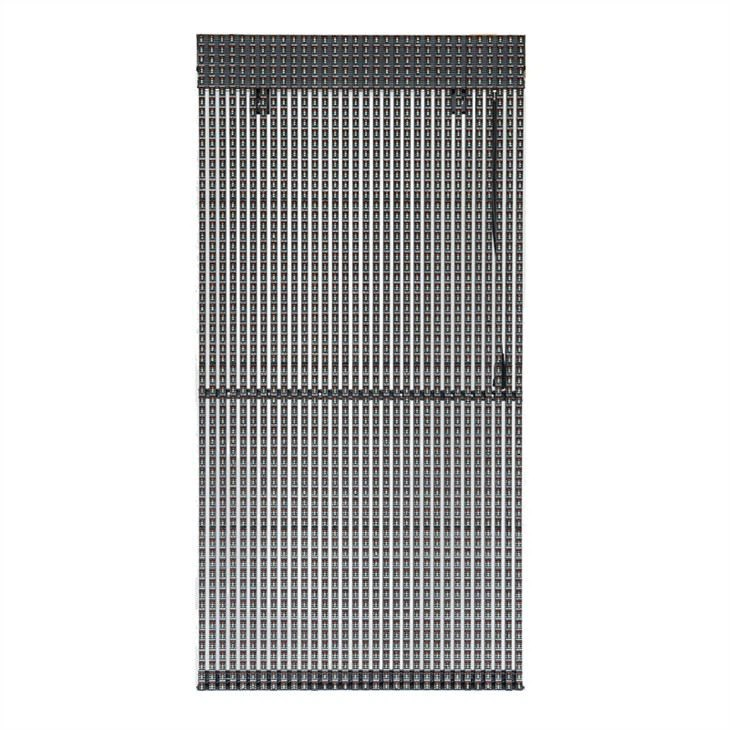

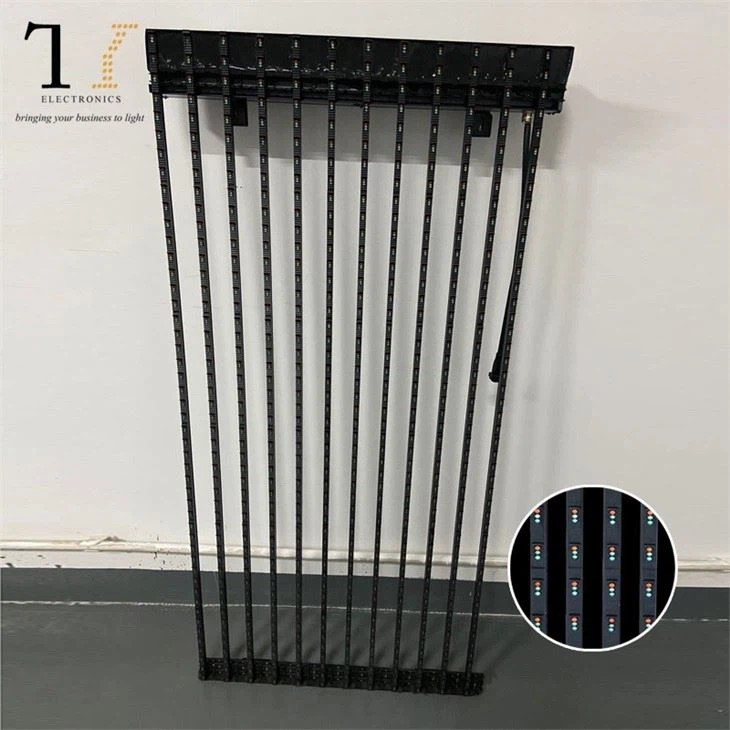

DIP Outdoor Transparent Curtain Screen, also called outdoor transparent led curtain or outdoor led strip display. the lamp bead material adopts Epistar chip, and adopts in-line technology. The brightness of led curtain screen is as high as 12000cd/m², and the playback effect is good during the day. Good self-heating system, no need to install air conditioner to dissipate heat. The front maintenance method can be used to eliminate the need to establish a maintenance channel. The led curtain display is energy-saving and saves a lot of money every year.
If you have any questions or need further information, please send an email to our Professional Marketing Manager (info@ty-leds.com), we will reply you as soon as possible. Thank you!
Product features:
Light weight, small wind load, suitable for large display screens (LED wall).
The weight is 60%-80% lighter than the traditional LED display, which greatly reduces the strength and weight of the basic structure of the display. It is especially suitable for the construction of ultra-large-scale LED displays. The air permeability is 40%-50%, and it has strong wind resistance. , Effectively reduce the wind load, and further reduce the strength and weight of the basic structure of the Transparent LED Display Wall.

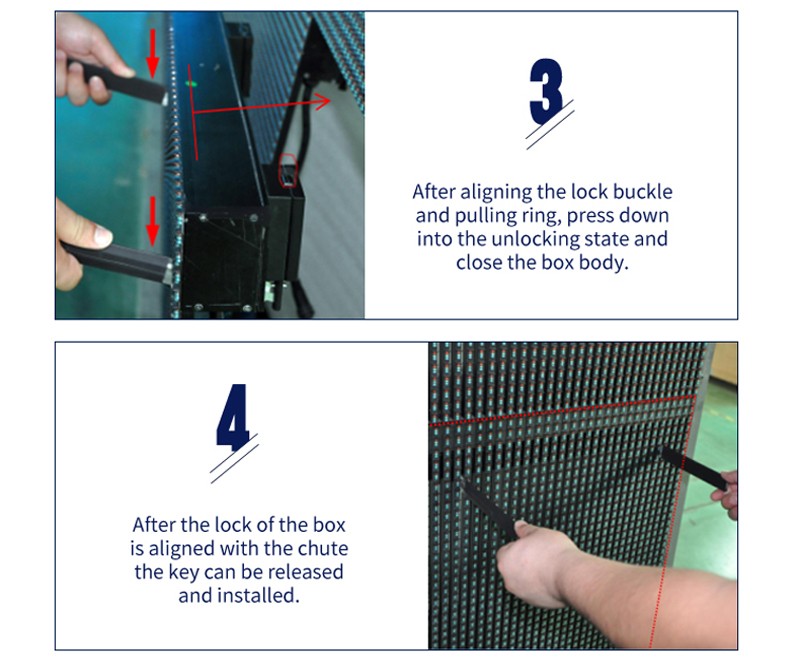

Simple structure, convenient installation and easy maintenance.

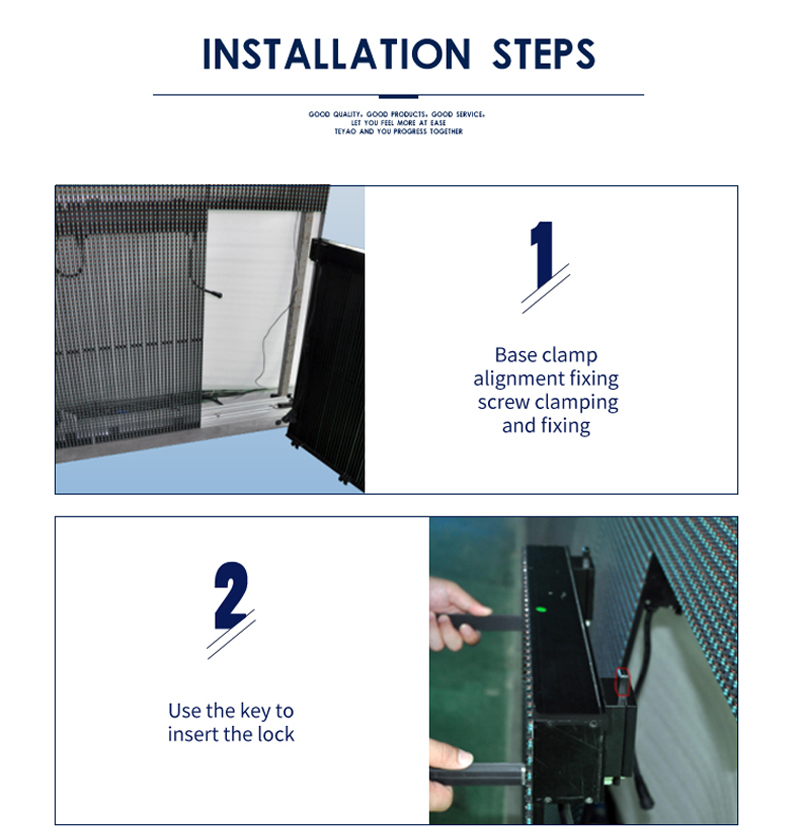

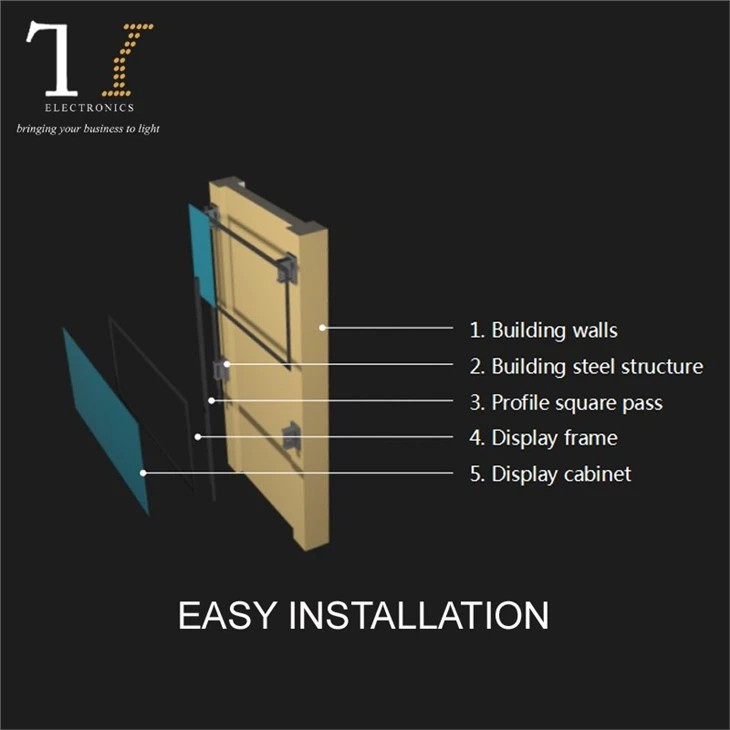

It can be easily attached to the wall with a small amount of components, and there is no damage to the wall and the foundation. According to the needs, it is convenient to realize the front maintenance or the rear maintenance. If the front maintenance method is adopted, there is no need to establish a maintenance channel.

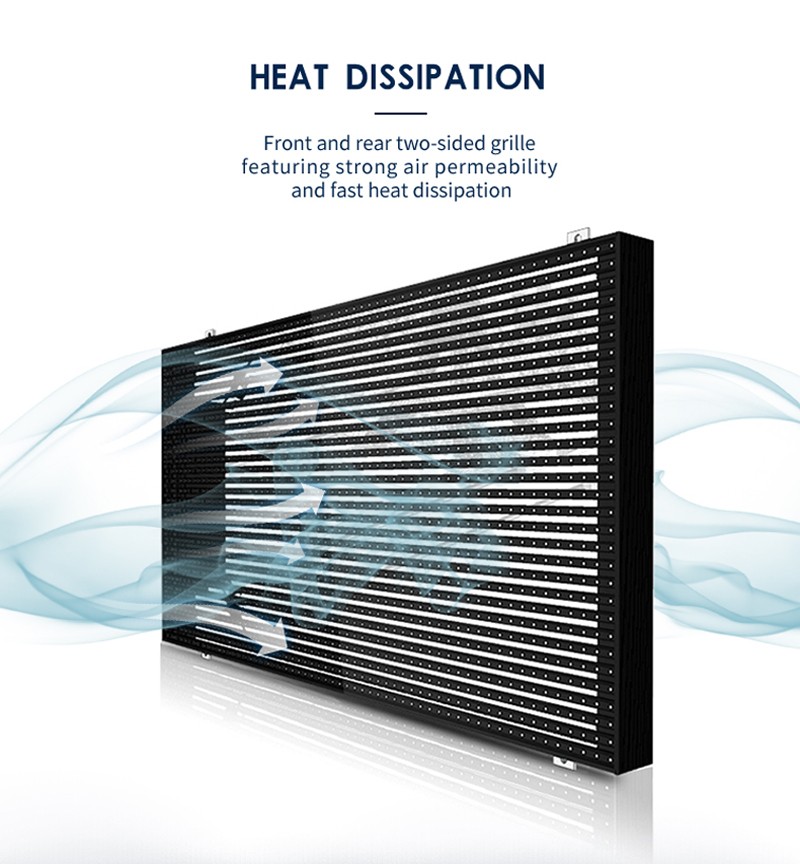

A good self-heating system does not need to install air conditioning for heat dissipation.
Each LED light bar is made of aluminum alloy material, which is transparent all around, so it can achieve good self-heating. At the same time, the power supply, control, etc. are isolated from the luminescent material, and there is no need to build a heat dissipation system like traditional LED screens.
Highly integrated light bar structure, high product stability.
Using a unique electronic circuit design to reduce the number of light bars, each 16 light bars share a set of power and signal connectors. Under the same conditions, the probability of poor connection is reduced by 94%.
Integrated design of control box and installation structure.
The control box is not only a part of the screen, but also a part of the structure. The structure of the screen body is greatly simplified, and no plugs and connections can be seen outside the screen. It is not only beautiful, but also greatly improves the stability of the screen.
High brightness, high refresh, high gray, and can be played during the day.
Outdoor waterproof grille screen
outdoor high brightness led transparent grille screen-DIP lamp series | ||||||||
Product No. | P15-15D | P16-16D | P20-20D | P15-31D | P16-33D | P25-25D | P31-31D | P25-50 |
Pixel pitch mm | V:15.625mm L:15.625mm | V:16.67mm L:16.67mm | V:20mm L:20mm | V:15.625mm L:31.25mm | V:16.67mm L:33.33mm | V:25mm L:25mm | V:31.25mm L:31.25mm | V:25mm L:50mm |
pixel dots/m² | 4096 | 3600 | 2500 | 2048 | 1800 | 1600 | 1024 | 800 |
Brightness cd/m² | 7500 | 7500 | 7000 | 7000 | 7000 | 6500 | 6000 | 2000 |
Hollow rate | 40% | 40% | 50% | 65% | 65% | 60% | 65% | 80% |

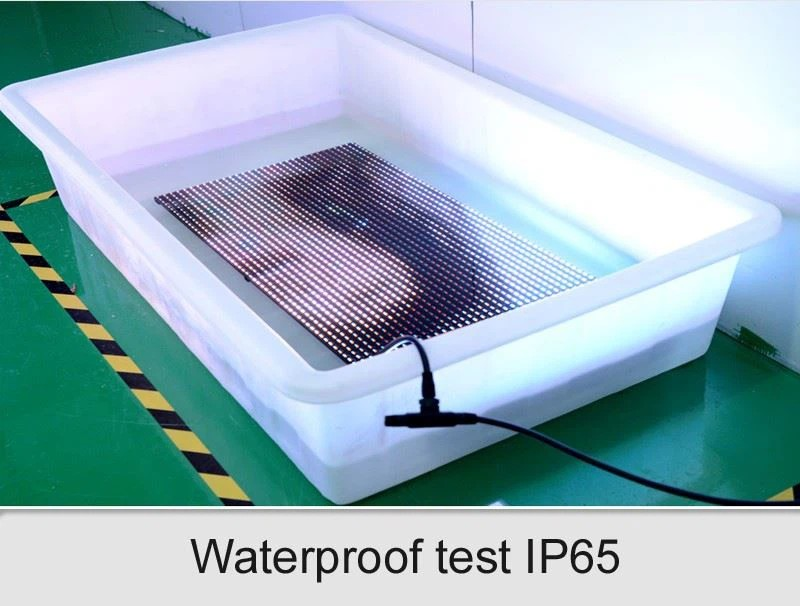

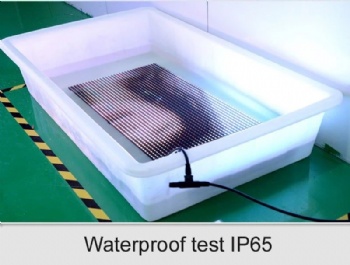

Waterproof level | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
Cabinet weight | 20kg/m² | 20kg/m² | 14kg/m² | 14g/m² | 7kg/m² | 13kg/m² | 12kg/m² | 12kg/m² |

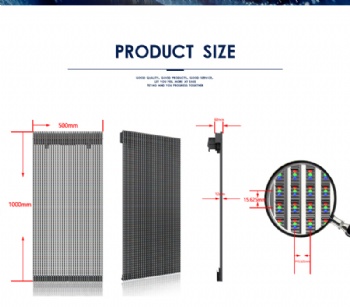

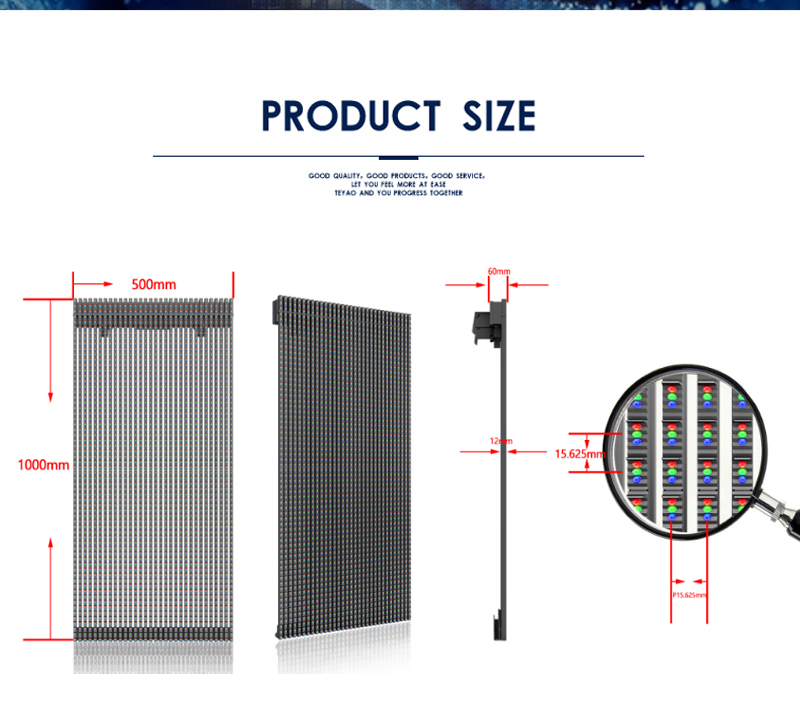

Cabinet size mm | W500xH1000 | W500xH1000 | W600xH1200 | W500xH1000 | W500xH1000 | W500xH1000 | W500xH1000 | W500xH1000 |
Maximum power | 450 | 450 | 400 | 400 | 400 | 400 | 350 | 350 |
Average power | 135 | 135 | 120 | 120 | 120 | 120 | 105 | 105 |
The best stadia | 15-300m | 16-300m | 20-300m | 20-300m | 25-300m | 25-300m | 30-600m | 35-600m |
