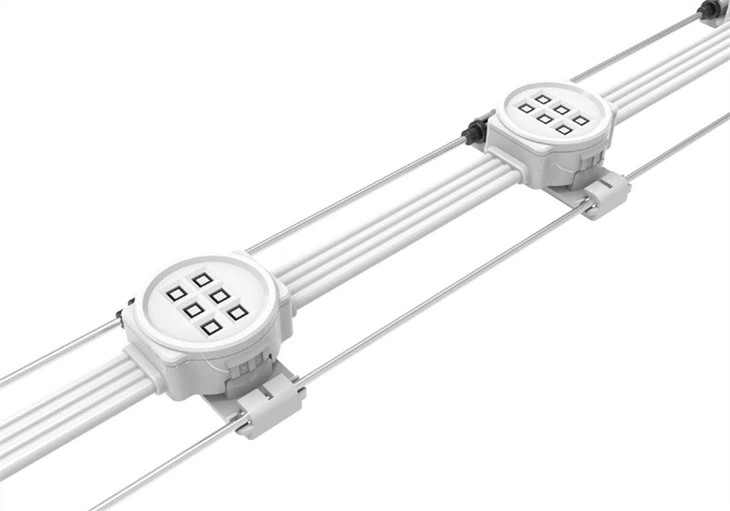

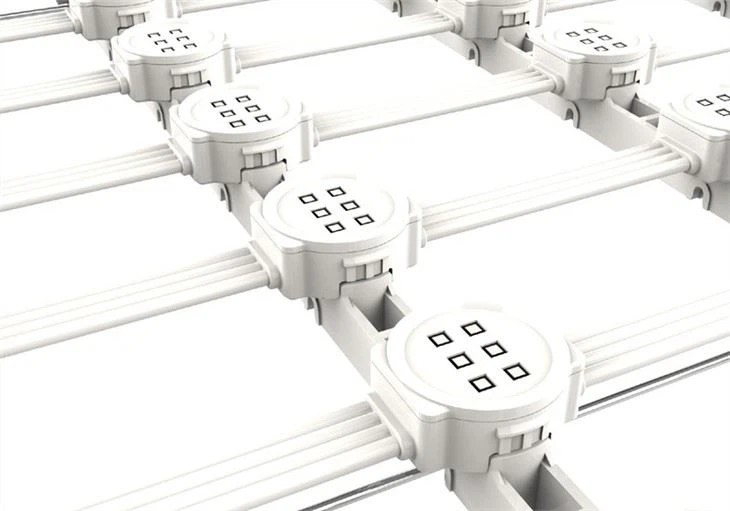

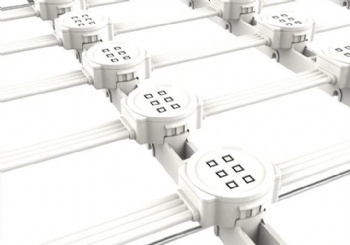

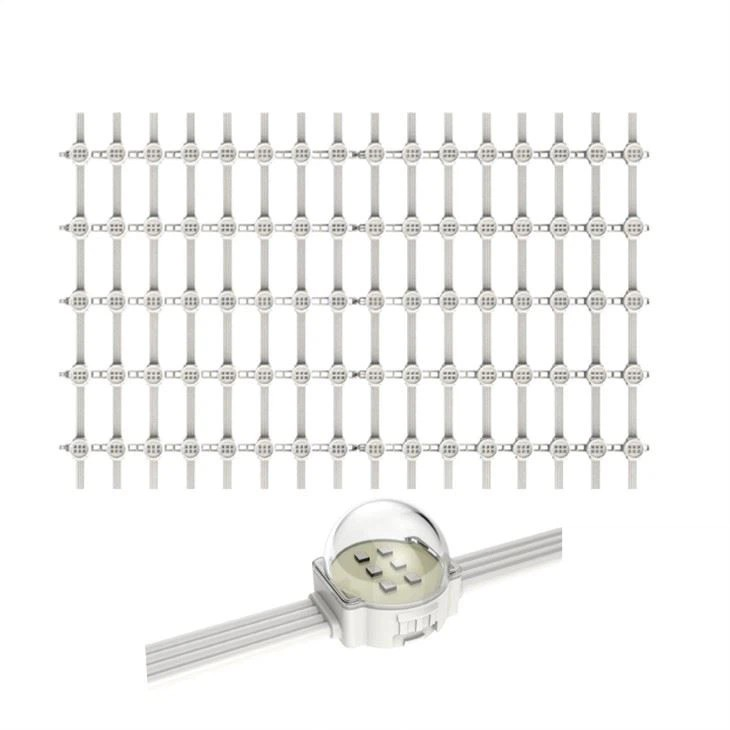

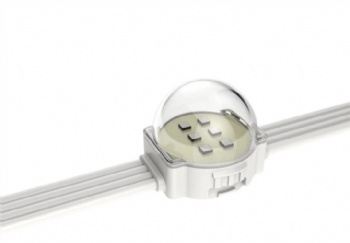

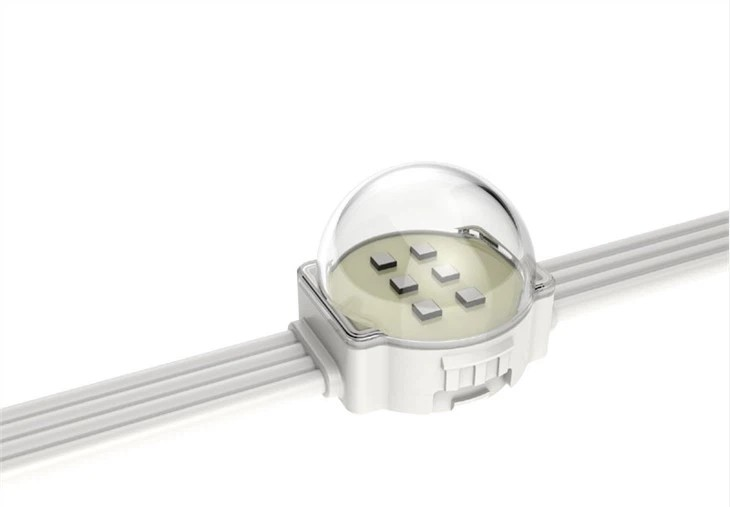

C27 outdoor mesh led screen is a low-power LED string light product specially designed for outdoor landscape lighting. It adopts engineering-grade flame-retardant plastic PC shell and is sealed and waterproofed with high thermal conductivity and weather-resistant PU glue; the light spot is small and the appearance is exquisite; the light string is connected through the national standard customized flexible cable, which can be bent and deformed at will, and supports special-shaped elevation installation; Product spacing and color can be customized; suitable for large-area display or lighting such as building facades, bridges, and sky screens.
If you have any questions or need further information, please send an email to our Professional Marketing Manager (info@ty-leds.com), we will reply you as soon as possible. Thank you!
Features:
★ A new generation of dual-channel real-time backup control protocol
★ Integrated wireless buckle type, no joint anti-pull connection design
★ Fully potting and waterproof design with high thermal conductivity glue
★ Outdoor lightning protection and electrostatic (ESD) professional protection design
★ The product is flexible, flexible in application, and a variety of installation methods
★ The light transmittance of steel wire installation is as high as 90%
★ Support RGB/W current individually adjustable (low brightness and high gray)
<tr
| Specification model | M1-P50 | M1-P100 | M1-P150 | M1-P200 | M6-P50 | M6-P100 | M6-P150 | M6-P200 |

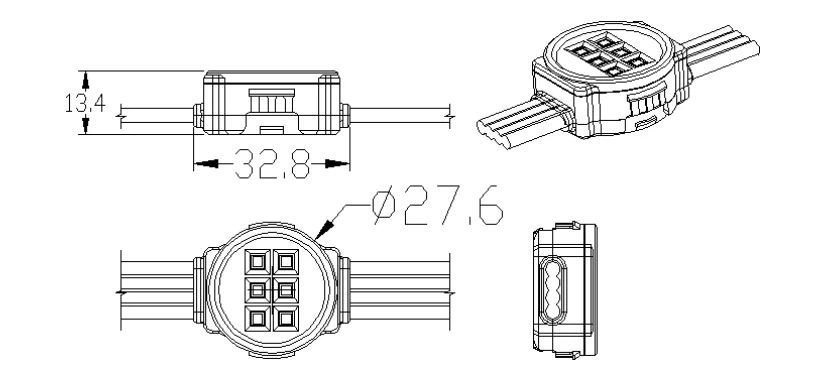

| Pixel size | Φ27(mm) | Φ27(mm) | Φ27(mm) | Φ27(mm) | Φ27(mm) | Φ27(mm) | Φ27(mm) | Φ27(mm) |
| type of light source | SMD3535 | SMD3535 | SMD3535 | SMD3535 | SMD3535 | SMD3535 | SMD3535 | SMD3535 |
| Light source viewing angle | 120° | 120° | 120° | 120° | 120° | 120° | 120° | 120° |
| Pixel composition | 1RGB | 1RGB | 1RGB | 1RGB | 6RGB | 6RGB | 6RGB | 6RGB |
| Pixel power | 0.22W | 0.22W | 0.22W | 0.22W | 1.5W | 1.5W | 1.5W | 1.5W |
| Pixel density | 400dots/M2 | 100dots/M2 | 44dots/M2 | 25dots/M2 | 400dots/M2 | 100dots/M2 | 44dots/M2 | 25dots/M2 |
| Gray scale | 12BIT | 12BIT | 12BIT | 12BIT | 12BIT | 12BIT | 12BIT | 12BIT |
| Bright degree | 670CD | 160CD | 70CD | 40CD | 6400CD | 1600CD | 700CD | 400CD |
| Permeability | 70% | 85% | 90% | 97% | 70% | 85% | 90% | 97% |
| Frame change frequency | 30FPS | 30FPS | 30FPS | 30FPS | 30FPS | 30FPS | 30FPS | 30FPS |
| Refresh rate | 1000Hz | 1000Hz | 1000Hz | 1000Hz | 1000Hz | 1000Hz | 1000Hz | 1000Hz |
| Input voltage | DC12V | DC12V | DC12V | DC12V | DC24V | DC24V | DC24V | DC24V |
| Maximum power | 90W/M2 | 22W/M2 | 10W/M2 | 5.5W/M2 | 600W/M2 | 150W/M2 | 66W/M2 | 37.5W/M2 |
| Heavy volume | 5.5kg/M2 | 2.5kg/M2 | 1.4kg/M2 | 1kg/M2 | 5.5kg/M2 | 2.5kg/M2 | 1.4kg/M2 | 1kg/M2 |
| life span | ≥50，000H | ≥50，000H | ≥50，000H | ≥50，000H | ≥50，000H | ≥50，000H | ≥50，000H | ≥50，000H |
| Protection level | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Fire-proof level | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 |
| Concatenated pixels | 502dots | 355dots | 290dots | 250dots | 320dots | 220dots | 180dots | 160dots |
| Cascade length | 25.1m | 35.5m | 43.5m | 50m | 16m | 22m | 27m | 32m |
