Pixel density

81225dots/㎡

65536dots/㎡

40000dots/㎡

25600dots/㎡

25600dots/㎡

10000dots/㎡

3906dots/㎡

2500dots/㎡

Display thickness

1-3mm

LED lamp beads

SMD1515

SMD2020

SMD2020

SMD2020

SMD2020

SMD2020

SMD2020

SMD2020

Module size

1150mm*225mm

1152mm*125mm

1150mm*160mm

1150mm*200mm

1150mm*200mm

1150mm*320mm

1152*256mm

1160mm*320mm

Electrical performance

Average: 200W/㎡, Maximum: 600W/㎡

Display weight

≤3kg/㎡

Visual transparency

＞70%

＞80%

＞85%

＞90%

＞90%

＞92%

＞93%

＞95%

IP-level

≥IP45

Average life expectancy

≥ 100,000 hours

Power supply requirements

220V±10%；AC50HZ，Three-phase five-wire

Brightness

800-2000cd/m2;Adjustable

800-4500cd/m2；Adjustable

1500-5000cd/m2； Adjustable

1500-4500cd/m2； Adjustable

1500-3500cd/m2； Adjustable

viewing distance

3m～150m

4m～150m

6m～250m

8m～250m

8m～250m

10m～250m

16m～250m

20m～250m

angle of view

Horizontal 160, vertical 140

gray scale

≥16(bit)

white point color temperature

5500K-15000K（adjustable）

driving method

static drive

Attenuation rate

Less than 0.05% for 2 years

Refresh frequency

3840HZ

frame change frequency

60HZ

mean working time between failures

10000hours

LED dead pixel rate

1/10000，and is discretely distributed

Control System

synchronous/asynchronous

working environment

◆Working environment: -10～+65 ℃/ 10～90 %RH◆Storage environment: -40～+85 ℃/ 10～90 %RH

installation method

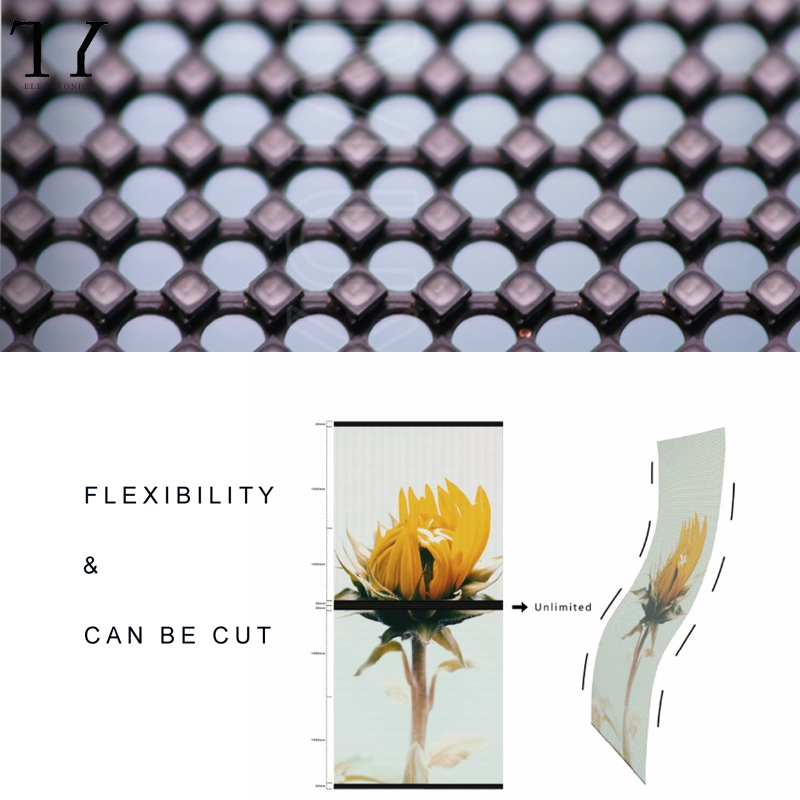

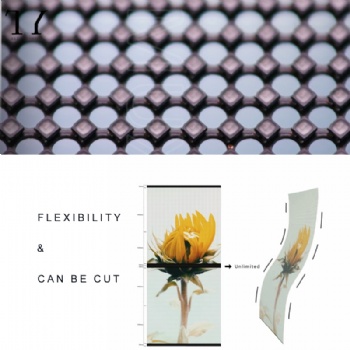

Paste, hoist, fix, support any size cutting, bending.
