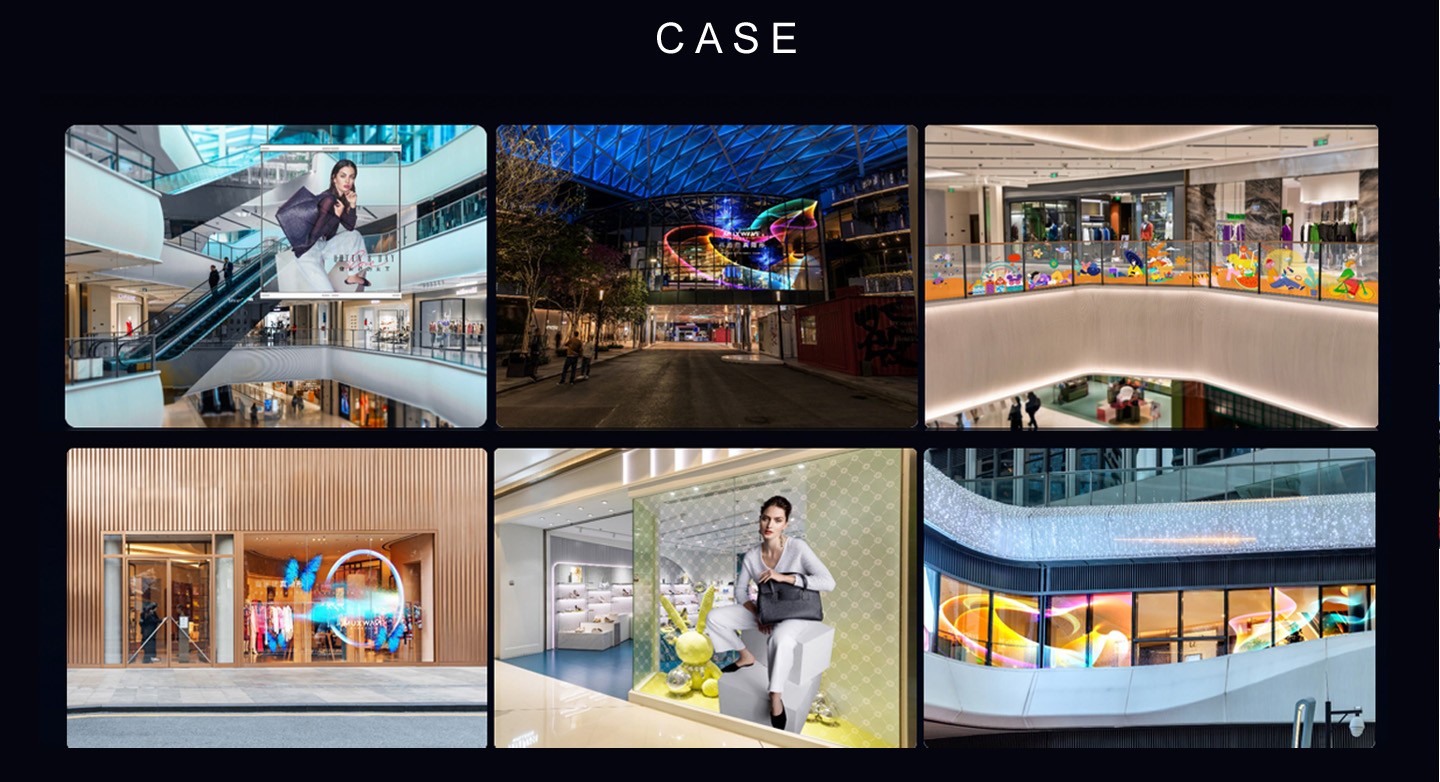

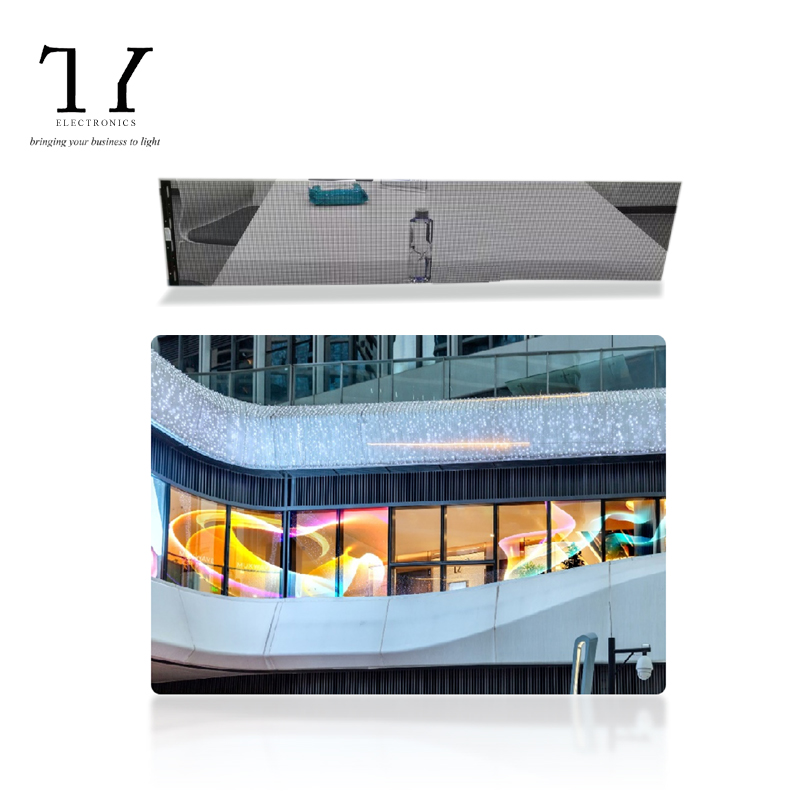

Installation: The whole installation without dragon skeleton, screen body can be left and right, up and down, can achieve 2-2.4 meters display height or width. Products are used in commercial Windows, glass curtain walls and other indoor and outdoor scenes.
Pixel pitch | L(3.508mm) W(3.508mm) | L(3.91mm) W(3.91mm) | L(5mm) W(5mm) | L(6.25mm) W(6.25mm) | L(6.25mm) W(6.25mm) | L(10mm) W(10mm) | L(16mm) W(16mm) | L(20mm) W(20mm) |
Pixel density | 81225dots/㎡ | 65536dots/㎡ | 40000dots/㎡ | 25600dots/㎡ | 25600dots/㎡ | 10000dots/㎡ | 3906dots/㎡ | 2500dots/㎡ |
Display thickness | 1-3mm | |||||||
LED lamp beads | SMD1515 | SMD2020 | SMD2020 | SMD2020 | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
Module size | 1150mm*225mm | 1152mm*125mm | 1150mm*160mm | 1150mm*200mm | 1150mm*200mm | 1150mm*320mm | 1152*256mm | 1160mm*320mm |
Electrical performance | Average: 200W/㎡, Maximum: 600W/㎡ | |||||||
Display weight | ≤3kg/㎡ | |||||||
Visual transparency | ＞70% | ＞80% | ＞85% | ＞90% | ＞90% | ＞92% | ＞93% | ＞95% |
IP-level | ≥IP45 | |||||||
Average life expectancy | ≥ 100,000 hours | |||||||
Power supply requirements | 220V±10%；AC50HZ，Three-phase five-wire | |||||||
Brightness | 800-2000cd/m2;Adjustable | 800-4500cd/m2；Adjustable | 1500-5000cd/m2； Adjustable | 1500-4500cd/m2； Adjustable | 1500-3500cd/m2； Adjustable | |||
viewing distance | 3m～150m | 4m～150m | 6m～250m | 8m～250m | 8m～250m | 10m～250m | 16m～250m | 20m～250m |
angle of view | Horizontal 160, vertical 140 | |||||||
gray scale | ≥16(bit) | |||||||
white point color temperature | 5500K-15000K（adjustable） | |||||||
driving method | static drive | |||||||
Attenuation rate | Less than 0.05% for 2 years | |||||||
Refresh frequency | ≥3840HZ | |||||||
frame change frequency | ≥60HZ | |||||||
mean working time between failures | ≥10000hours | |||||||
LED dead pixel rate | ≤1/10000，and is discretely distributed | |||||||
Control System | synchronous/asynchronous | |||||||
working environment | ◆Working environment: -10～+65 ℃/ 10～90 %RH◆Storage environment: -40～+85 ℃/ 10～90 %RH | |||||||

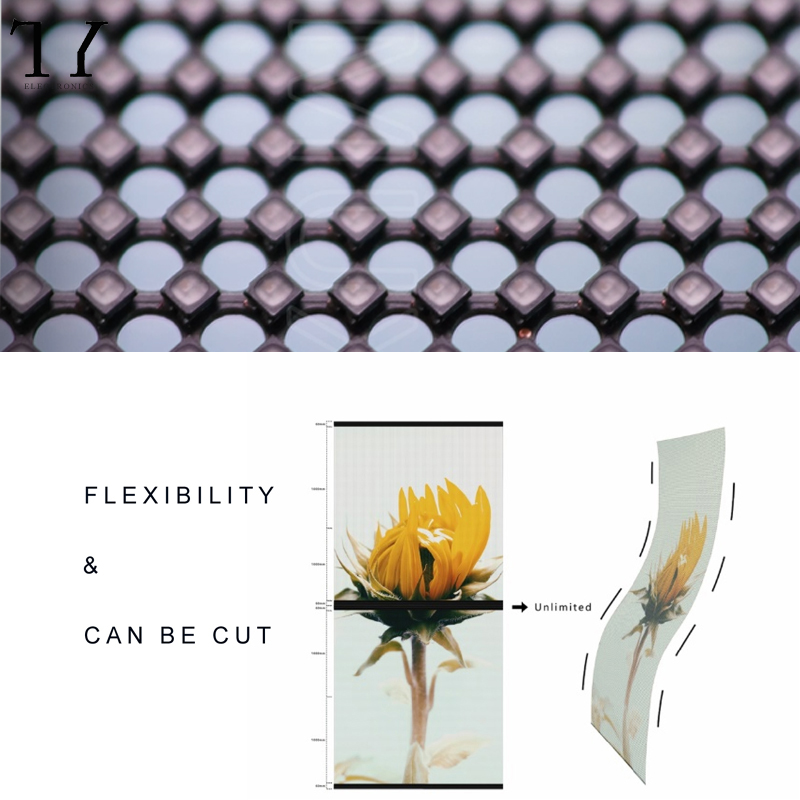

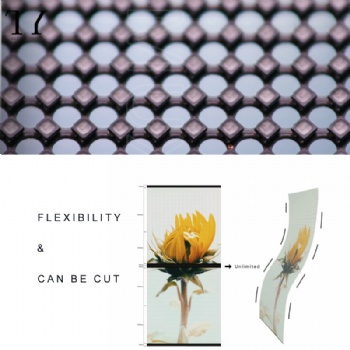

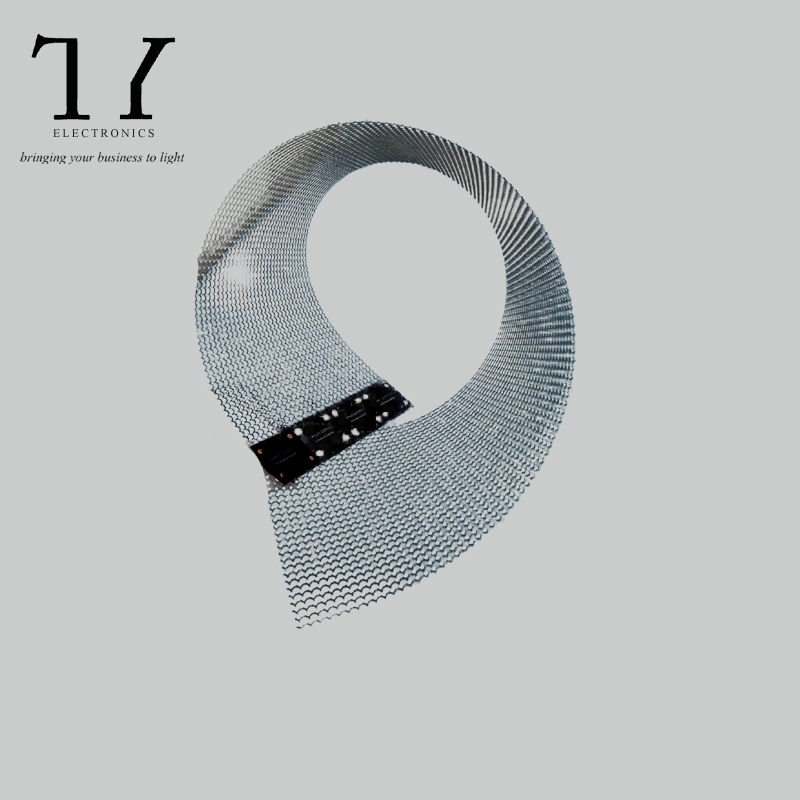

installation method | Paste, hoist, fix, support any size cutting, bending. | |||||||
