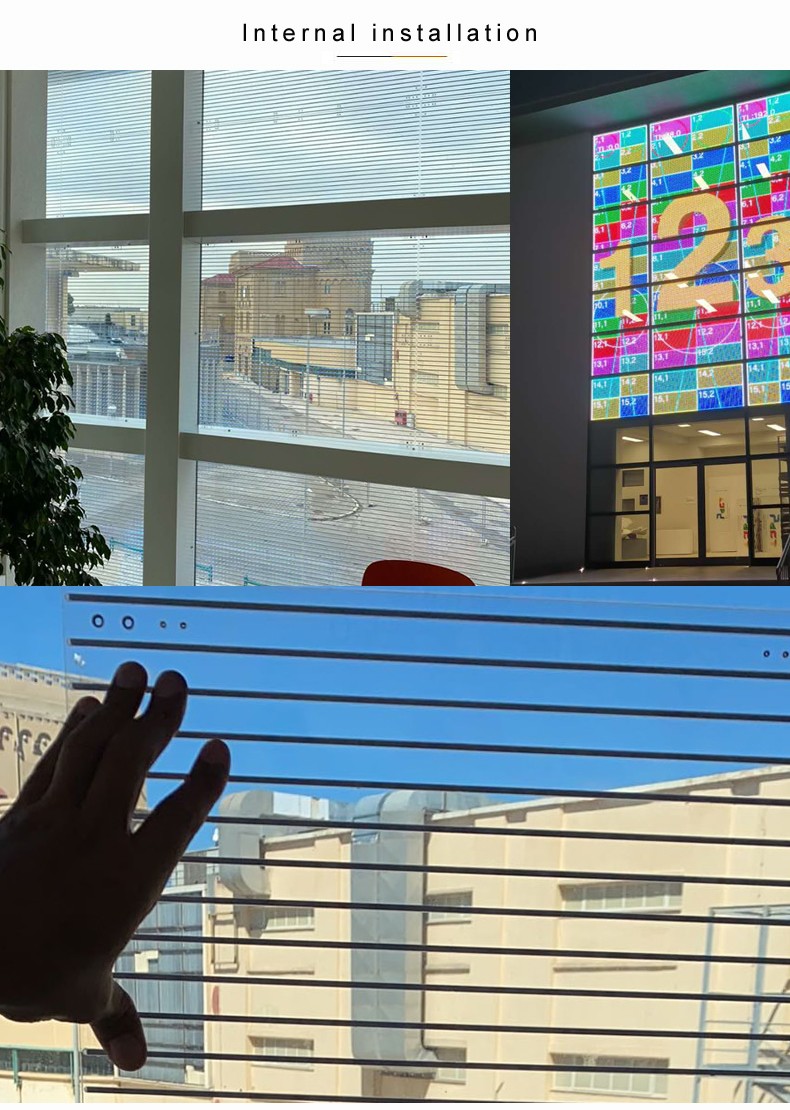

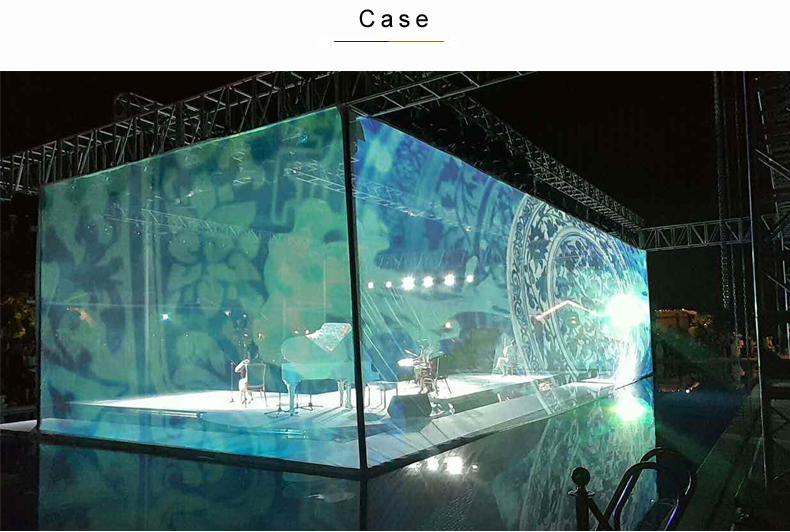

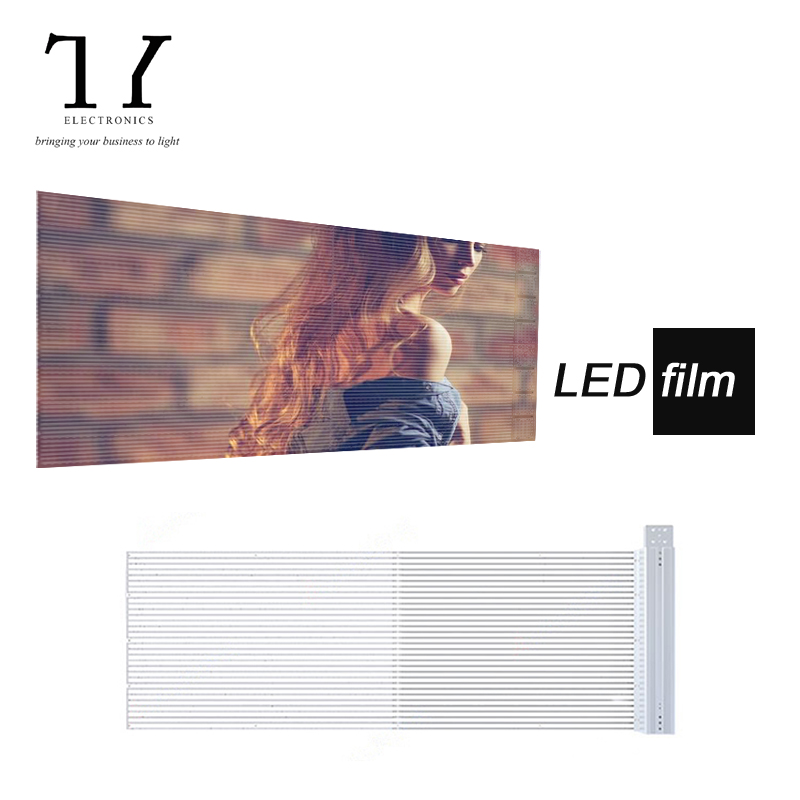

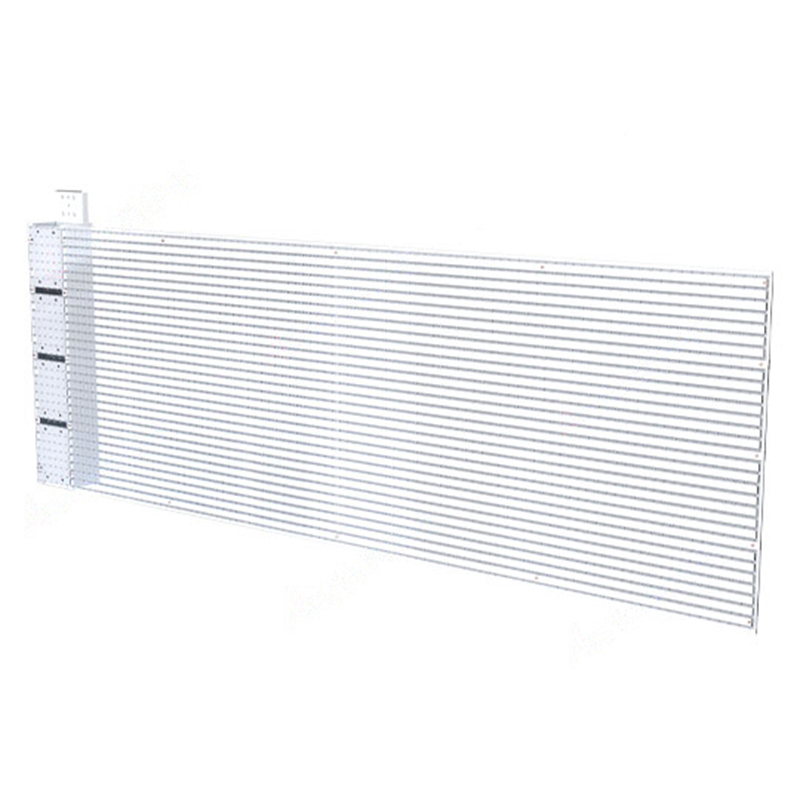

Adhesive LED Display is a flexible and transparent LED display screen that can be directly pasted, and it adopts a light-driven integrated technology. The film screen has the characteristics of bendable, cuttable, not limited by size and shape, adaptable to arc structure, ultra-light and ultra-thin, high permeability and so on. The appearance of the film screen is almost invisible, energy-saving, safe and beautiful. It is mainly used in glass windows such as shops, banks, real estate, automobile 4S shops, subway entrances, lighting projects, riverside guardrails, etc.
If you have any questions or need further information, please send an email to our Professional Marketing Manager (info@ty-leds.com), we will reply you as soon as possible. Thank you!
Features:
1.High transparency. The high permeability of the led film screen does not change the original design structure and does not affect the daily lighting. The permeability is 65%-95%.
2. Ultra light and thin. The thickness is only 3mm, and the weight is as light as 5kg/㎡
3. Can be bent. The led film screen is flexible and can be pasted with curved glass buildings.
4. Can be cut. Support arbitrary cutting, not limited by size and shape, meet different size requirements, and achieve more creative displays.
5. Wide viewing angle. Each angle is 160°, no dead spots and no color cast, every side is wonderful.

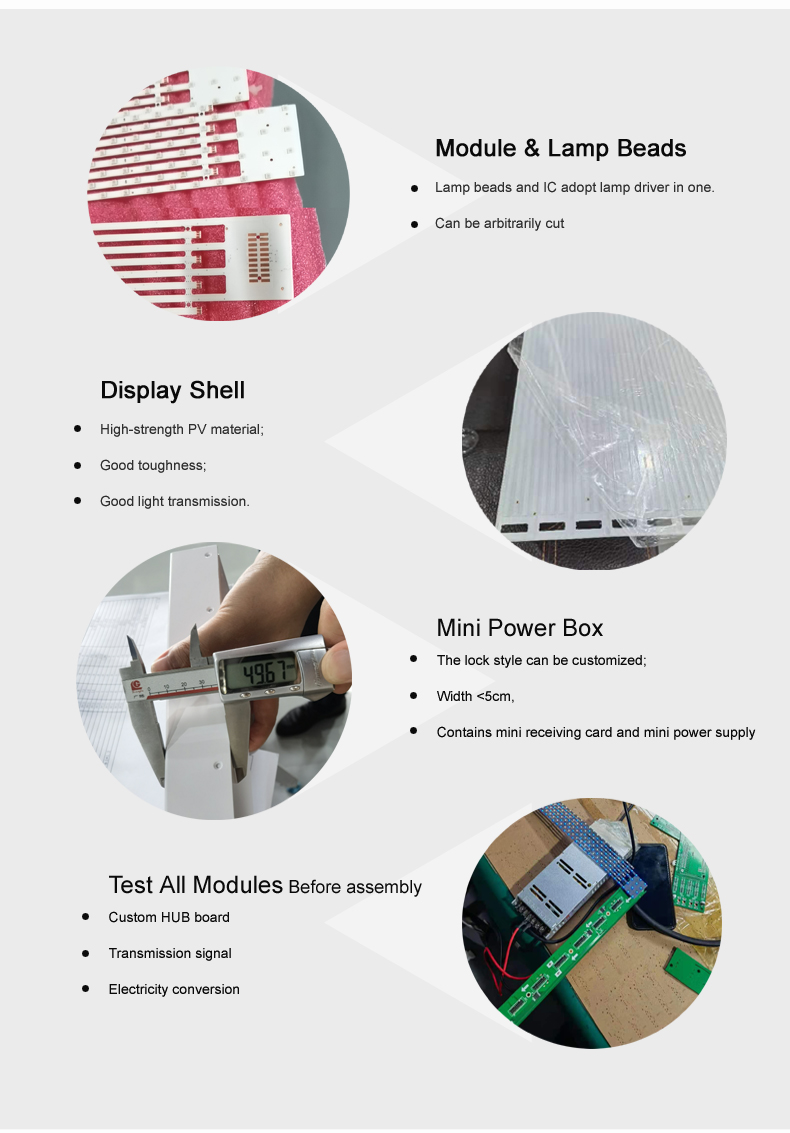

6. Safe and beautiful. The screen body has no components, the power supply is hidden, safe and reliable.

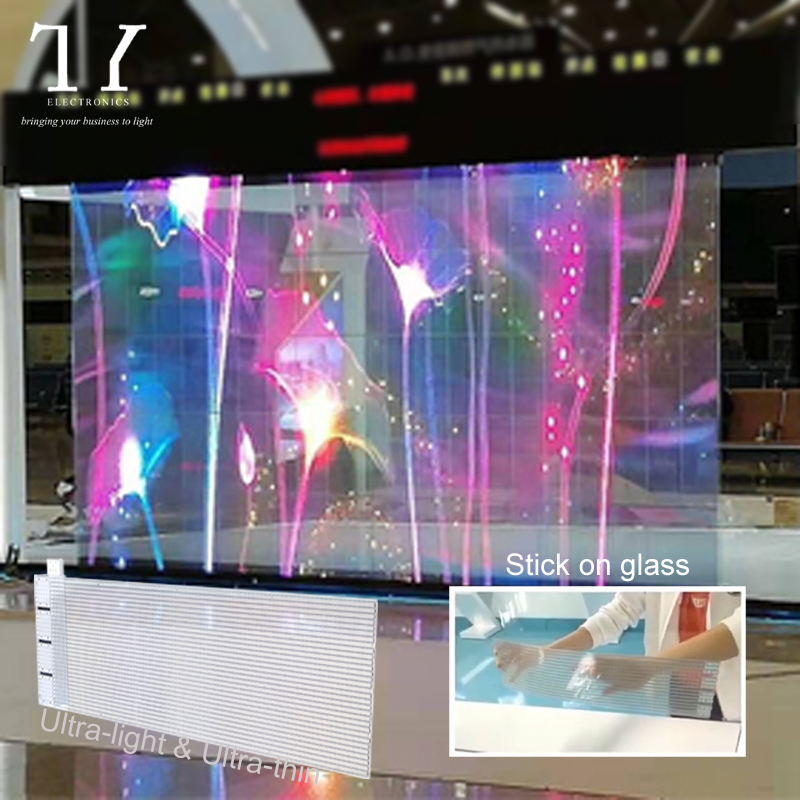

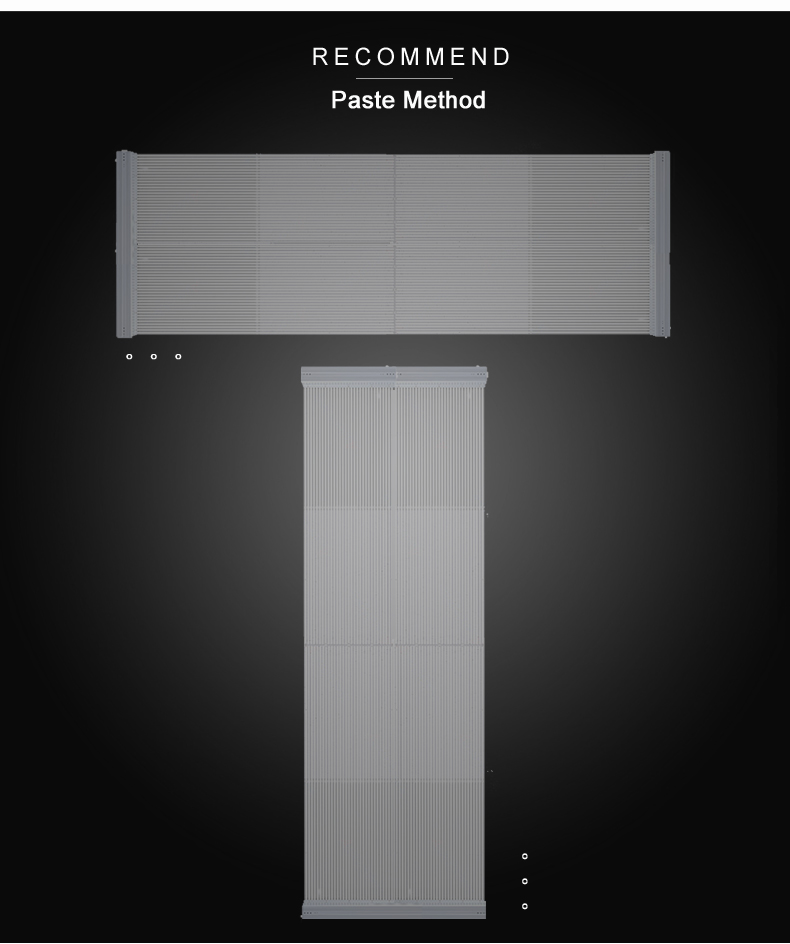

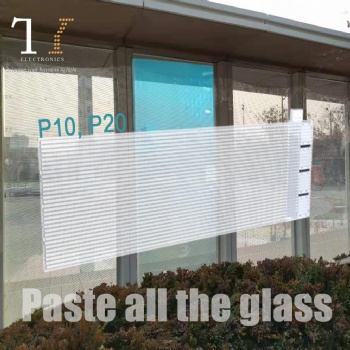

7. Quick installation. Simple and fast, clean the glass and paste it directly on the glass surface.
Point pitch: P4-8, P5-10, P10, P20
Product specification | P4-8 | P5-10 | P10 | P20 |
Pixel pitch | 4*8mm | 5*10mm | 10*10mm | 20*20mm |
Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
Pixel density | 31250pixel/m² | 20000pixel/m² | 10000pixel/m² | 2500pixel/m² |

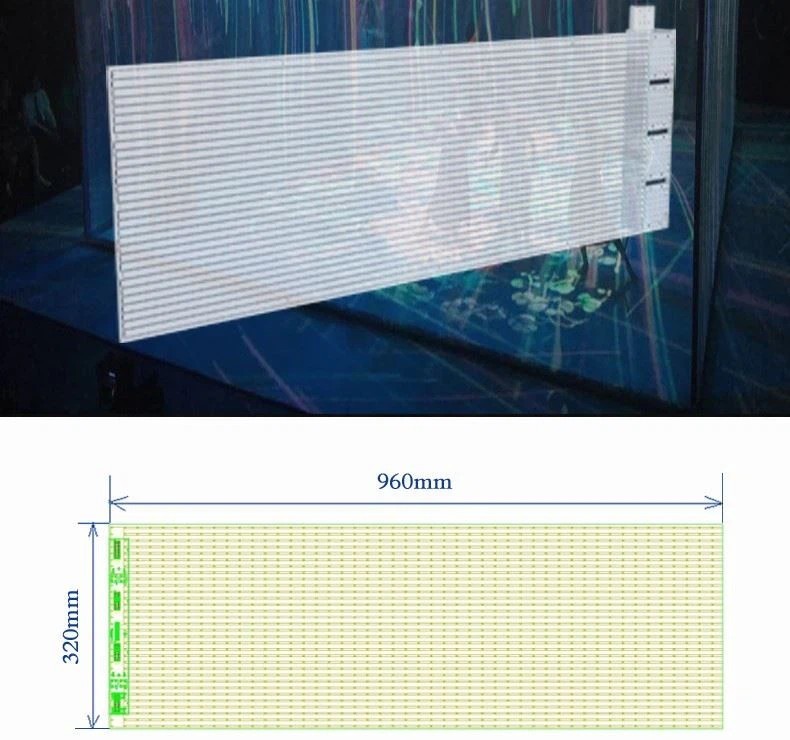

Unit size | 960*320mm | 960*320mm | 960*320mm | 960*320mm |
Unit resolution | 240*40 dots | 192*32 dots | 96*32 dots | 48*16 dots |
Module thickness | ≤3mm | ≤3mm | ≤3mm | ≤3mm |
Best viewing distance | 8~100m | 8~100m | 10~120m | 30~150m |
Weight | 3kg/m² | 3kg/m² | 3kg/m² | 3kg/m² |
Permeability | ≤60% | ≤65% | ≤70% | ≤85% |
Brightness | ≤5000cd/m² | ≤5000cd/m² | ≤5000cd/m² | ≤4000cd/m² |
Refresh frequency | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
Drive method | Static | Static | Static | Static |
System | Nova | Nova | Nova | Nova |
Maximum power consumption | ≤750W/㎡ | ≤750W/㎡ | ≤750W/㎡ | ≤180W/㎡ |
Average power consumption | ≤250W/㎡ | ≤250W/㎡ | ≤250W/㎡ | ≤550W/㎡ |
